C9300-48UB. Built with double buffers, MAC and IP scale, and higher access control list (ACL) scale. 48-port 1G/100M/10M, 60W PoE. Based on Cisco UADP 2.0XL ASIC.
C9300-24UXB. Built with double buffers, MAC and IP scale, and higher access control list (ACL) scale. 24-port 5G/2.5G/1G/100M multigigabit, 60W PoE. Based on Cisco UADP 2.0XL ASIC.
C9300-24UB. Built with double buffers, MAC and IP scale, and higher access control list (ACL) scale. 24-port 1G/100M/10M, 60W PoE. Based on Cisco UADP 2.0XL ASIC.
C9300-24H. Optimized for wired and wireless converged access, with 24-port 1G/100M, 90W PoE. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC.
C9300-48H. Optimized for wired and wireless converged access, with 48-port 1G/100M, 90W PoE. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC.
C9300-24U, C9300-48U. Optimized for wired and wireless converged access, with 24- and 48-port 1G/100M, 60W PoE. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC. Orderable with Meraki cloud-management experience.
C9300-48UXM. Built for secure Wi-Fi 6/6E high-speed access. 36-port 2.5G/1G/100M multigigabit, 12-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit, 60W PoE. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC. Orderable with Meraki cloud-management experience.
C9300-24UX. Built for secure Wi-Fi 6/6E high-speed access and beyond. 24-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit, 60W PoE. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC. Orderable with Meraki cloud-management experience.
C9300-48UN. Built for secure Wi-Fi 6/6E high-speed access. 48-port 5G/2.5G/1G/100M multigigabit, 60W PoE. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC. Orderable with Meraki cloud-management experience.
C9300-24T, C9300-48T. 24- and 48-port 1G/100M copper, data only. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC. Orderable with Meraki cloud-management experience.
C9300-24S, C9300-48S. 24- and 48-port 1G SFP. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC. Orderable with Meraki cloud-management experience.
C9300-24P, C9300-48P. 24- and 48-port 1G/100M copper, 30W PoE. 40G, 25G, 10G, 1G fiber and 10G multigigabit copper modular uplink options. Based on Cisco UADP 2.0 ASIC. Orderable with Meraki cloud-management experience.
C9300X-48HX. Built for secure Wi-Fi 6/6E high-speed access and beyond, with 90W PoE for Cisco smart building deployments. 48-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit. Based on Cisco UADP 2.0sec ASIC, with 100G hardware-based IPsec. Orderable with Meraki cloud-management experience.
C9300X-48HXN. Built for secure Wi-Fi 6/6E high-speed access and beyond, with 90W PoE for Cisco smart building deployments. 40-port 5G/2.5G/1G/100M multigigabit, 8-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit. Based on Cisco UADP 2.0sec ASIC, with 100G hardware-based IPsec. Orderable with Meraki cloud-management experience.
C9300X-48TX. Built for secure Wi-Fi 6/6E high-speed access and beyond. 48-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit, data only. Based on Cisco UADP 2.0sec ASIC, with 100G hardware-based IPsec. Orderable with Meraki cloud-management experience.
C9300X-24HX. Built for secure Wi-Fi 6/6E high-speed access and beyond, with 90W PoE for Cisco smart building deployments. 24-port 10GBASE-T, 10G/5G/2.5G/1G multigigabit, 1000M/100M. Based on Cisco UADP 2.0sec ASIC, with 100G hardware-based IPsec. Orderable with Meraki cloud-management experience.
C9300X-24Y. Higher density fiber models for campus access and distribution. 24-port 25G/10G/1G (SFP28). Based on Cisco UADP 2.0sec ASIC, with 100G hardware-based IPsec. Orderable with Meraki cloud-management experience.
C9300X-12Y. 25G fiber models for campus access and branch. 12-port 25G/10G/1G (SFP28). Based on Cisco UADP 2.0sec ASIC, with 100G hardware-based IPsec. Orderable with Meraki cloud-management experience.
C9300L-24T-xx, C9300L-48T-xx. 24- and 48-port 1G/100M copper, data only. Four 10G (-4X) or 1G (-4G) fixed fiber uplink options. Based on Cisco UADP 2.0 ASIC. The 10G uplink models are orderable with Meraki cloud-management experience.
C9300L-48PF-4X, C9300L-48PF-4G. 48-port 1G/100M copper, 30W PoE. Four 10G (-4X) or 1G (-4G) fixed fiber uplink options. Based on Cisco UADP 2.0 ASIC. The 10G uplink models are orderable with Meraki cloud-management experience.
C9300L-48UXG-4X, C9300L-48UXG-2Q. 48-port 60W PoE, 12-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit, 36-port 1G. Four 10G (-4X) or two 40G (-2Q) fixed fiber uplink options. Based on Cisco UADP 2.0 ASIC. The 10G uplink models are orderable with Meraki cloud-management experience.
C9300L-24P-xx, C9300L-48P-xx. 24- and 48-port 1G/100M copper, 30W PoE. Four 10G (-4X) or 1G (-4G) fixed fiber uplink options. Based on Cisco UADP 2.0 ASIC. The 10G uplink models are orderable with Meraki cloud-management experience.
C9300L-24UXG-4X, C9300L-24UXG-2Q. 24-port 60W PoE, 8-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit, 16-port 1G. Four 10G (-4X) or two 40G (-2Q) fixed fiber uplink options. Based on Cisco UADP 2.0 ASIC. The 10G uplink models are orderable with Meraki cloud-management experience.
C9300L-48UX-4Y. 48-port 60W PoE, 8-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit, 40-port 1G. Two 25G fixed fiber uplinks. Based on Cisco UADP 2.0 ASIC.
C9300LM-48T-4Y. Shallow depth chassis. 48-port 1G/100M copper, data only. Four 25G fixed fiber uplinks. Based on Cisco UADP 2.0 ASIC.
C9300LM-48UX-4Y. Shallow depth chassis. 48-port 60W PoE, 8-port 10GBASE-T, 10G/5G/2.5G/1G/100M multigigabit, 40-port 1G. Four 25G fixed fiber uplinks. Based on Cisco UADP 2.0 ASIC.
C9300LM-24U-4Y, C9300LM-48U-4Y. Shallow depth chassis. 24- and 48-port 1G/100M copper, 60W PoE. Four 25G fixed fiber uplinks. Based on Cisco UADP 2.0 ASIC.
As integral members of the Catalyst 9000 family, Catalyst 9300 Series switches are engineered to revolutionize network infrastructure, accommodating the demands of a hybrid landscape where workplaces extend beyond traditional boundaries, endpoints vary in form, and applications are distributed across diverse locations.
StackWise 1-T supports up to 8 units in a stack with a stacking bandwidth of up to 1 TBps, allowing seamless expansion and connectivity for future-proof networks.
Modular operating system that offers support for advanced model-driven programmability, and enables hosting of 3rd-party applications, and containerization.
Custom-designed Unified Access Data Plane 2.0 ASIC delivering accelerated performance with integrated security and advanced QoS features.
AES-256/MACsec-256, ASAc firewall, and advanced AI/ML technologies combined with continuous security monitoring help safeguard against cyber threats.
Integrated cloud management and monitoring of the network through Cisco Catalyst Center, Meraki cloud-managed dashboard, or cloud monitoring for Catalyst.
Features flexible uplink modules supporting diverse transition speeds including 100G, 40G, 25G, Multigigabit, 10G, and 1G to adapt to various network requirements.
Certain components in Catalyst 9300X are backward compatible with the Catalyst 9300 switches, ensuring investment protection and ease of upgrade.
Promotes sustainability and energy efficiency with innovative technologies and eco-conscious practices, contributing to the overall well-being, and a greener future.
|
|
48 port Cisco UPOE+, 48x 10G Multigigabit (10G/5G/2.5G/1G/100M) with 90W UPOE+ | 1,760 Gbps |
|---|---|---|
|
|
48 port Data, 48x 10G Multigigabit (10G/5G/2.5G/1G/100M) | 1,760 Gbps |
|
|
48 port Cisco UPOE+, 8x 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40x 5G Multigigabit (5G/2.5G/1G/100M) | 1,400 Gbps |
|
|
24 port Cisco UPOE+, 24x 10G Multigigabit (10G/5G/2.5G/1G/100M) | 1,280 Gbps |
|
|
12 port 25G/10G/1G SFP28 | 1,400 Gbps |
|
|
24 port 25G/10G/1G SFP28 | 2,000 Gbps |
|
|
24 port Data | 208 Gbps |
|
|
48 port Data | 256 Gbps |
|
|
24 port PoE+ | 208 Gbps |
|
|
48 port PoE+ ENERGY STAR® certified | 256 Gbps |
|
|
24 port Cisco UPOE | 208 Gbps |
|
|
48 port Cisco UPOE | 256 Gbps |
|
|
24 port Multigigabit Cisco UPOE (10G/5G/2.5G/1G/100M) | 640 Gbps |
|
|
48 port Cisco UPOE, 36 ports 100M/1G/2.5G + 12 ports Multigigabit (10G/5G/2.5G/1G/100M) ENERGY STAR® certified | 580 Gbps |
|
|
48 port 5Gbps Multigigabit UPOE ports (5G/2.5G/1G/100M) | 640 Gbps |
|
|
24 port Cisco UPOE | 208 Gbps |
|
|
24 port Multigigabit Cisco UPOE (10G/5G/2.5G/1G/100M) | 640 Gbps |
|
|
48 port Cisco UPOE | 256 Gbps |
|
|
24 port Cisco UPOE+ | 208 Gbps |
|
|
48 Cisco UPOE+ | 256 Gbps |
|
|
24 1G SFP | 208 Gbps |
|
|
48 port 1G SFP | 256 Gbps |
|
|
24 port Data | 56 Gbps |
|---|---|---|
|
|
24 port Data | 128 Gbps |
|
|
48 port Data | 104 Gbps |
|
|
48 port Data | 176 Gbps |
|
|
24 port PoE+ | 56 Gbps |
|
|
24 port PoE+ | 128 Gbps |
|
|
48 port PoE+ | 104 Gbps |
|
|
48 port PoE+ | 176 Gbps |
|
|
48 port PoE+ | 104 Gbps |
|
|
48 port PoE+ | 176 Gbps |
|
|
24 port Cisco UPOE, 8 ports Multigigabit (10G/5G/2.5G/1G/100M) + 16 ports 1G (1G/100M/10M) | 272 Gbps |
|
|
24 port Cisco UPOE, 8 ports Multigigabit (10G/5G/2.5G/1G/100M) + 16 ports 1G (1G/100M/10M) | 352 Gbps |
|
|
48 port Cisco UPOE, 12 ports Multigigabit (10G/5G/2.5G/1G/100M) + 36 port 1G (1G/100M/10M) | 392 Gbps |
|
|
48 port Cisco UPOE, 12 port Multigigabit (10G/5G/2.5G/1G/100M) + 36 port 1G (1G/100M/10M) | 472 Gbps |
|
|
48 port Cisco UPOE, 8 port 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40 port 1G (1G/100M/10M) | 440 Gbps |
|
|
48 port 1G (1G/100M/10M) with Cisco UPOE | 296 Gbps |
|
|
24 port 1G (1G/100M/10M) with Cisco UPOE | 248 Gbps |
|
|
48 port 1G (1G/100M/10M) Data | 296 Gbps |
| Model | Stacking support | Stacking bandwidth support | Optional Stacking hardware | Number of members | Supported stack members |
|---|---|---|---|---|---|
|
|
StackWise-1T | 1 Tbps | StackWise cable | 8 | Stacks with other Catalyst 9300X models at StackWise-1T speeds with same license level. Stacks with C9300 SKUs at StackWise-480 speeds with same license level. |
|
|
StackWise-480 | 480 Gbps | StackWise Cable | 8 | Other C9300 SKUs with same license level. C9300 higher scale SKUs only stack with other like higher scale models. |
|
|
StackWise-320 | 320 Gbps | C9300L-STACK-KIT Or C9300L-STACK-KIT2 | 8 | Stacks with other Catalyst 9300L and 9300LM models with same license level. |
|
|
StackWise-320 | 320 Gbps | C9300L-STACK-KIT2 | 8 | Stacks with other Catalyst 9300L and 9300LM models with same license level. |
| Model | Stacking support |
|---|---|
|
|
Data stack 50 cm (cable option with C9300 and C9300X SKUs) |
|
|
Data stack 1m (cable option with C9300 and C9300X SKUs) |
|
|
Data stack 3m (cable option with C9300 and C9300X SKUs) |
|
|
Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable |
|
|
Data stack 50cm cable (default cable with C9300L Stack Kit) |
|
|
Data stack 1m cable (cable option with C9300L Stack Kit) |
|
|
Data stack 3m cable (cable option with C9300L Stack Kit) |
|
|
Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
|
|
Data stack 3m cable (cable option with C9300L Stack Kit) |
|
|
Data stack 1m cable (cable option with C9300L Stack Kit2) |
|
|
Data stack 3m cable (cable option with C9300L Stack Kit2) |
| Model | Description |
|---|---|
|
|
Catalyst 9300X 8x 10G/1G Multigigabit Network Module |
|
|
Catalyst 9300X 8x 25G/10G/1G Network Module |
|
|
Catalyst 9300X 2x 100G/40G Network Module |
|
|
Catalyst 9300X 4x 100G/40G Network Module |
|
|
Catalyst 9300 Series 4x 1G Network Module |
|
|
Catalyst 9300 Series 4x Multigigabit Network Module |
|
|
Catalyst 9300 Series 8x 10G/1G Network Module |
|
|
Catalyst 9300 Series 2x 40G Network Module |
|
|
Catalyst 9300 Series 2x 25G/10G/1G Network Module |

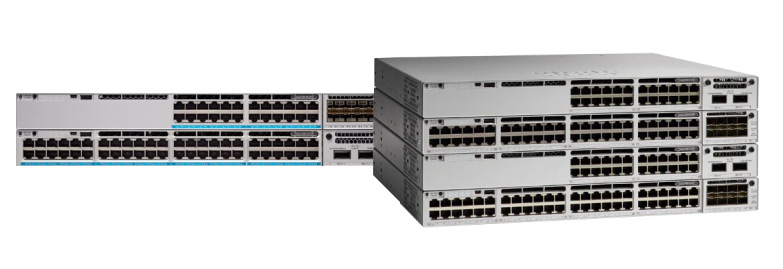

The Cisco Catalyst 9300 Series switches represent Cisco's premier stackable enterprise access switching platform. Built on Cisco’s advanced networking architecture, these switches with Software-Defined Access (SD-Access) simplify enterprise network operations. The Cisco DNA Center provides detailed network insights, automated provisioning, and finds the best path for network flow. It utilizes advanced threat prevention and privacy protection features like encrypted communication channels and granular access control. The Cisco Catalyst 9300 switches with support for multi-gigabit speeds, and PoE+ capabilities are designed for high-density environments that require scalable, secure, and high-performing network infrastructures. With sub-microsecond accuracy, Precision Time Protocol (PTP; IEEE 1588v2) synchronizes time and frequency over network devices and infrastructures. The significant stack bandwidth capacity and power delivery capabilities make the Cisco Catalyst 9300 Series switches ideal for achieving smooth networking in high-density environments.
