Package Content

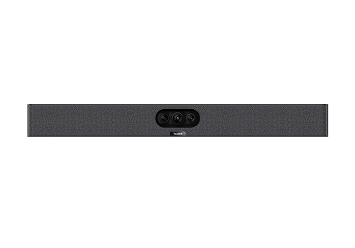

MeetingBar A25

MeetingBar A25

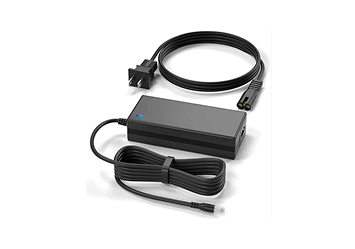

Power Adapter

Power Adapter

Wall mount

Wall mount

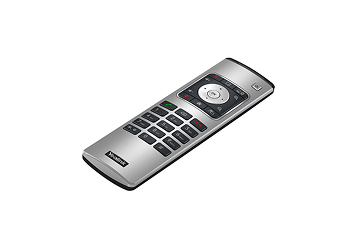

VCR11 Remote + USB (Optional with A25-010)

VCR11 Remote + USB (Optional with A25-010)

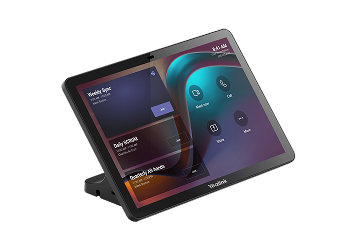

CTP25 Touch Panel  Optional with A25-031)

CTP25 Touch Panel Optional with A25-031)

Platform Compatibility

Microsoft Teams

Microsoft Teams

Microsoft Teams
  • Certified native Microsoft Teams Rooms device with an optimized Teams meeting experience.
  • Remote device management with Microsoft Teams Admin Center.
Zoom

Zoom

Zoom
  • Certified native Zoom Rooms device with an optimized Zoom meeting experience.
  • Remote device management with Zoom Device Platform.

Features

151o HFOV

151o HFOV

Triple 4K Lenses

Triple 4K Lenses

Electric Privacy Shutter

Electric Privacy Shutter

8 MEMS Mic Array

8 MEMS Mic Array

Built-in 10W Speaker

Built-in 10W Speaker

5M Pickup Range

5M Pickup Range

AI Noise Cancellation

AI Noise Cancellation

Video Fence

Video Fence

Advanced Video Conferencing Solution for Small & Focus Rooms

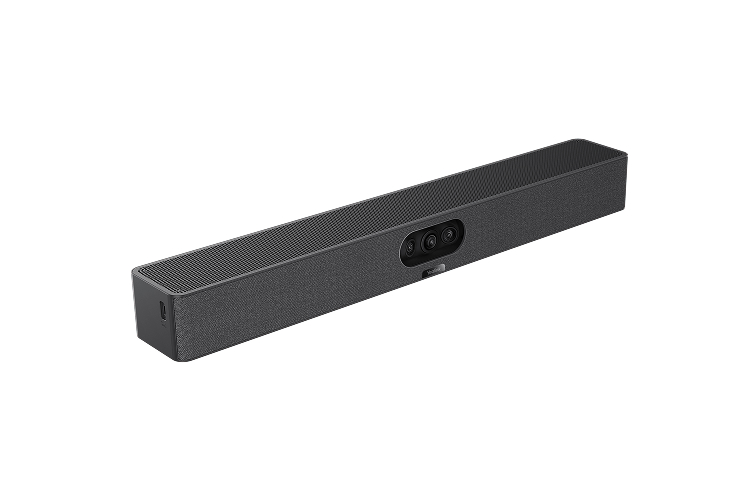

Yealink MeetingBar A25 is an all-in-one video collaboration bar designed for small and focus meeting rooms. It features a 4K ultra-wide AI camera with auto-framing and speaker tracking. An integrated 8-MEMS microphone array with AI noise cancellation ensures clear audio. With built-in speakers, simple single-cable deployment, native Microsoft Teams or Zoom Rooms support, and BYOD USB mode. It delivers a secure, intelligent, and easy-to-manage meeting solution for modern workplaces.

Operating System

  • Android 13
  • Based on Microsoft Device Ecosystem Platform (MDEP)

Camera

  • Number of cameras: 3
    • Lens FOV
    • 1x Ultra-Wide Camera: DFOV 182°, HFOV 151°, VFOV 81°
    • 2x Tele Camera: DFOV 93.5°, HFOV 84.4°, VFOV 53.1°
  • Maximum pixels: 3 * 4k Cameras, all with 8MP image sensors
  • Number of preset positions: 9
  • Depth of field: 0.4-2.5 meters
  • Maximum resolution: 3840 * 2160
  • Maximum frame rate: 30fps
  • Video output resolution: 4k (2160p) 30fps, 1080p60fps
  • Privacy cover: Electric lens cap
  • Electronic gimbal
  • Lens calibration
  • Intelligence Features
  • IntelliFocus (2 portraits)
  • Auto Framing
  • Speaker Tracking
  • Picture in Picture
  • Video Fence
  • Smart Gallery (Zoom Rooms only)

Speaker

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

Microphone

  • Built-in 8 MEMS microphone array
  • 5-meter pickup distance, 3.5-meter high-quality pickup distance
  • Signal-to-noise ratio: 72dB@1kHz
  • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
  • Dynamic range: 28-100dBSPL
  • Sensitivity: -38dBV/pa
  • Frequency response: 100-20kHz
  • Sampling rate: 48k32bit
  • Bit depth: 32-bit
  • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
  • Noise suppression: AI-enhanced noise suppression
  • Expansion Mics: not supported

Resolution

  • Lens Resolution: up to 4k30fps
  • Bandwidth requirement: 10Mbps or more

Content sharing

  • Teams: 1080P30fps in meeting, 4k30fps in local sharing
  • Zoom: up to 1080p30fps
  • General Mode (BYOM): up to 4k30fps
  • RingCentral: 1080p30fps
  • H.323/SIP: 1080p30fps

Video Codec

  • H.264 High profile, H.264 SVC, H.264

Audio Codec

  • ARES: 24kHz bandwidth
  • G.722.1C: 16kHz bandwidth
  • G.722.1: 8kHz bandwidth
  • G.722: 8kHz bandwidth
  • G.711 (PCMA/PCMU): 4kHz bandwidth
  • G.729: 8kHz bandwidth

Security

  • Full Disk Encryption: AES-128, AES-256
  • Data Encryption: Symmetric Keys, PKI
  • Device Identity: Protected by device attestation
  • Device Access: Authenticated using API
  • Key Protection: Arm TrustZone, RPMP

Communication standard protocol

  • H.323/SIP in General Mode
  • Dual stream protocol: H.239 (H.323) / BFCP (SIP)
  • FECC: H.224/H.281
  • H.323 protocol suit: H.245, H.225, H.235, H.241
  • Gatekeeper account and SIP account

Communication standard protocol

  • Wi-Fi 6
    • 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax
    • 2x2 MIMO
  • Bluetooth 5.1
  • TCP/IP (IPv4/IPv6), DHCP/static IP
  • HTTPS secure web access

Configuration Management

  • Automatic configuration via web page/display/AutoP
  • Firmware upgrade, factory reset
  • Configuration import and export
  • System log export

Configuration Management

  • Yealink Https Web Portal
  • Yealink Device Management Platform
  • Yealink Management Cloud Service
  • Microsoft Device Management Platform(Microsoft Teams Admin Center/Intune)
  • Zoom Device Management

Installation

  • Wall mount (provided with the product)
  • Use TV Mount (additional: purchase VB-TVMount-01, VB-TVMount-02 or TV-Clip Mount)
  • Place on the desktop (additional: purchase VB-TabletopMount-01)

Interface

  • 1x USB2.0 Type-A port
  • 1x USB2.0 Type-C port(side)
  • 1x USB3.0 Type-C port
  • video input supports formats up to maximum 4K30 fps, including 1080P60fps(content sharing)
  • video output supports formats up to 1080P30fps(BYOM)
  • 1x Ethernet port: 10/100/1000Mbps
  • 1x Yealink VCH port (RJ-45)
  • 1x HDMI-out port
  • video output supports formats up to maximum 4k30fps, including 1080p60fps
  • supports HDMI CEC
  • 1x 3.5mm Line-out port
  • 1x Power port
  • 1x Security lock slot
  • 1x Reset slot

Package

  • MeetingBar A25
  • Power adapter, 3.5m/11.48ft
  • 1x HDMI cable, 1.8m/5.91ft
  • 1x Network cable, 3m/9.84ft
  • 1x USB A to C cable, 3.0m/9.84ft
  • Wall Mount
  • Cable cover
  • MeetingBar A25 quick start guide
  • Optional Package
    • A25-010: A25+VCR11+USB C to C cable (1.8m/5.91ft)

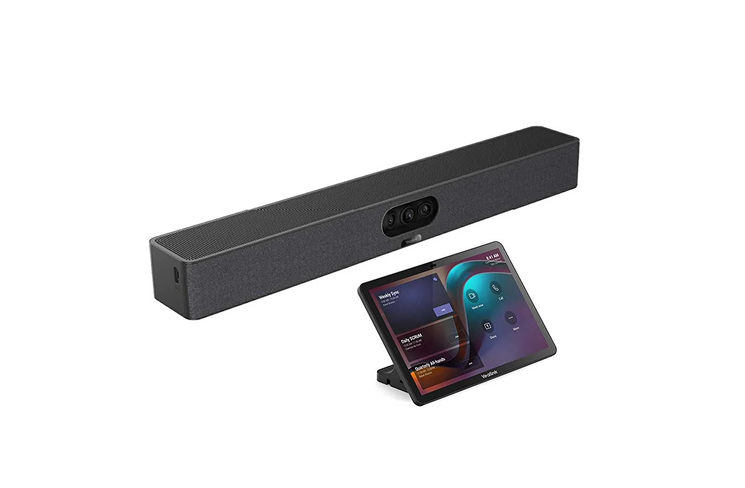

    • A25-031: A25+CTP25 Package (CTP25, 2m/6.56ft 65W PD power adapter, 7.5m/24.6ft Network cable, 1.2m/3.94ft USB C to C cable, High stand, Cable management cover)

Environmental Factor

  • Operating humidity: 10 - 95%
  • Operating temperature: 0 - 40°C
  • Storage temperature: -30℃~70℃
  • BTU/hr: 38 in idle, 58 in meeting

Dimensions and weight(W × D × H)

  • MeetingBar A25: 570x80x65 mm
  • N.W/CTN: 3.812kg
  • G.W/CTN: 4.290kg

Warranty

  • Standard: 2-year limited hardware warranty included
  • Extended: Additional extended warranties are available at the time of hardware purchase. Contact your reseller.

Yealink MeetingBar A25 is an all-in-one video collaboration bar designed specifically for small and focus meeting rooms. It features a 4K ultra-wide AI camera, intelligent auto framing and speaker tracking, and an integrated 8-MEMS microphone array with AI noise cancellation. With built-in speakers, simplified single-cable deployment, and native Microsoft Teams Rooms on Android, it delivers a secure, intelligent, and easy-to-manage meeting solution for modern workplaces.
