Package Content

MeetingBar A30

MeetingBar A30

WPP30

WPP30

Features

4x e-PTZ Camera

4x e-PTZ Camera

8 MEMS Beamforming Microphone Array

8 MEMS Beamforming Microphone Array

Electric Privacy Shutter

Electric Privacy Shutter

Content Sharing

Content Sharing

BYOD mode

BYOD mode

AI-Powered Tracking

AI-Powered Tracking

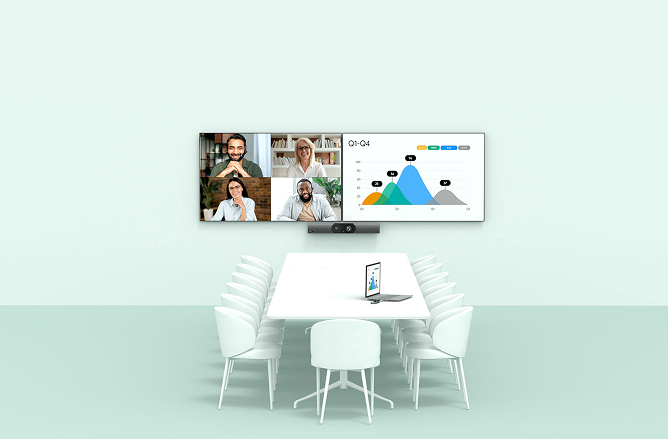

Simplified Meeting Setup in Medium-Sized Rooms with Yealink MeetingBar A30

The Yealink MeetingBar A30, with its dual-camera setup, high-quality audio, and AI-powered technology, captures clear footage of participants in medium-sized meeting spaces. Empower BYOD collaboration with this all-in-one system that allows users to connect their personal devices and use preferred platforms without any special configurations.

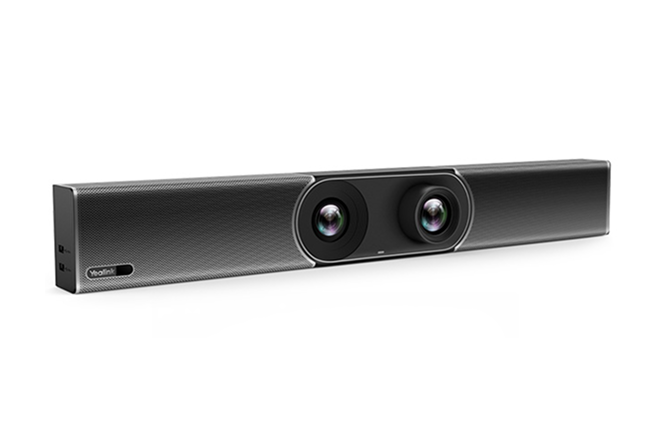

Yealink MeetingBar A30 BYOD

Dual Camera System

  • Wide Camera:
    - 8 MP Camera
    - Field of view: 120°
    - 4 x e-PTZ Camera
    - 120° DFOV, 112° HFOV, 79° VFOV
  • Telephoto Camera:
    - 8 MP Camera
    - Field of view: 90°
    - 10x Hybrid Zoom (3.5x optical, 3x digital)
    - Horizontal Rotation Angle: +25°/-25°
    - Vertically Rotation Angle: +16°/-16°
    - 90° DFOV, 81° HFOV, 50° VFOV
  • Electric Privacy Shutter
  • Intelligence Features
    - Auto Framing (Frame and capture everyone in detail)
    - Speaker Tracking (Switch automatically between active speakers)
    - Picture in Picture (View speaker and group people simultaneously)
    - Smart Gallery (Zoom only, display multiple video feeds from a single conference room)
  • 9x Camera presets

Audio

  • Built-in 8 MEMS microphone array with a voice pickup range of 6 meters
  • Support external mic
  • Speaker volume: 89db SPL@1W, 98db SPL@8W both +/-2db at 0.5m
  • Sensitivity: 89db SPL@1W, at 0.5m
  • Yealink Noise Proof Technology
  • Beamforming directed voice pickup technology
  • Full-duplex
  • AGC (Automatic Gain Control)
  • Echo cancellation
  • Built-in microphone frequency response: 100Hz to 8kHz
  • Speaker frequency response: 100Hz to 8kHz

Operating System

  • Android 10.0

Meeting Features

  • Calendar
  • One-click join
  • Meeting collaboration
    - Content sharing
    - Whiteboard
  • Meeting control:
    - Add participates
    - Hold/Resume
    - Camera On/Off
    - Mute/Unmute
    - Volume Up/Down
    - Hang up

Video Standard and Network Suitability

  • Video codecs: H.264 High profile, H.264 SVC, H.264

Network and Security Features

  • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
  • Built-in Bluetooth 4.2
  • IPv4 and IPv6, DHCP/static IP
  • HTTP/HTTPS web server
  • TLS 1.2/1.3, AES 256-bit encryption
  • QoS: 802.1p/q, Diff-serv
  • VLAN, LLDP
  • IEEE802.1X
    - EAP-MD5/EAP-TLS
    - PEAP-MSCHAPv2
    - EAP-TTLS/EAP-MSCHAPv2
  • Network diagnosis: Ping, Trace route
  • Time and date synchronization using SNTP
  • Built-in certificate

Ports

  • 2 x HDMI output (CEC supported)
  • HDMI input (through the VCH51 Sharing Kit)
  • Motion sensor (Teams supported)
  • 1 x Line-in (3.5 mm)
  • 1 x Line-out (3.5 mm)
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x 10 M/100 M/1000 M Ethernet port
  • 1 x Yealink extension port (RJ-45)
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

Other Physical Features

  • External Yealink Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
  • USB Output: 5 V image-20230322112748641 0.5 A
  • Power consumption (PSU):
    - Standby Power Consumption: 14.9 W
    - Average Power Consumption: 12.5 W
    - Peak Power Consumption: 18 W
  • Power Supply:
    - Input: 100-240V ~ 50/60Hz
    - Output: 48V 0.7A
  • Dimension (W.D.H): 700 mm x 98 mm x 121 mm
  • Operating humidity: 10 - 90%
  • Operating temperature: 0 - 40°C
  • Storage temperature: -30 to +70°C

Weight

  • A30-010:
    - N.W/CTN: 4.75 kg
    - G.W/CTN: 5.68 kg
  • A30-020:
    - N.W/CTN: 7.05 kg
    - G.W/CTN: 8.13 kg
  • A30-025:
    - N.W/CTN: 7.20 kg
    - G.W/CTN: 8.39 kg

MeetingBar A30 Package

  • Package contents:
    - MeetingBar A30 endpoint
    - 3 m Ethernet cable
    - 2 x 1.8 m HDMI cable
    - Mounting Bracket and Accessories
    - Power adapter
    - Quick Start Guide
    - Controller (optional):
    CTP18 Touch Panel
    VCR20 Remote Control
    VCR11 Remote Control
    - Content sharing(optional):
    VCH51 Sharing Kit (HDMI/USB-C)
    WPP20 Wireless Presentation Pod
    WPP30 Wireless Presentation Pod
  • Carton Meas: 903 mm x 325 mm x 306 mm

MeetingBar A30 + CTP18 Package

  • Carton Meas: 796 mm x 434 mm x 212 mm

The Yealink MeetingBar A30 provides crystal-clear audio without any distracting noises, and its dual-camera system with AI-powered auto-framing ensures that everyone is always in view. With the Yealink WPP30 presentation pod, users can initiate meetings anywhere. The content sharing and whiteboard features boost idea exchange and engagement. The all-in-one design helps with streamlined management, simplifies setup, saves space, and reduces cable clutter.
