Package Content

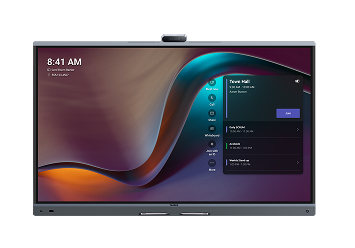

MeetingBoard Pro

MeetingBoard Pro

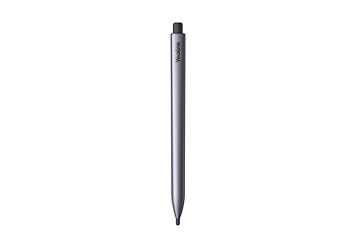

Stylus Pens

Stylus Pens

Platform Compatibility

Microsoft Teams

Microsoft Teams

Microsoft Teams
  • Certified native Microsoft Teams Rooms device with an optimized Teams meeting experience.
  • Supports centralized device management through Microsoft Teams Admin Center and Yealink Management Cloud.
Zoom

Zoom

Zoom
  • Certified native Zoom Rooms device with an optimized Zoom meeting experience.
  • Supports centralized device management through Zoom Device Platform and Yealink Management Cloud.

Features

Triple 50MP Camera System

Triple 50MP Camera System

12X Pro PTZ Camera

12X Pro PTZ Camera

Fast and Precise Camera AI

Fast and Precise Camera AI

Electric Privacy Shutter

Electric Privacy Shutter

16 MEMS Mic Array

16 MEMS Mic Array

36W Speakers

36W Speakers

12M Duplex Voice Pick-up

12M Duplex Voice Pick-up

AI-Enhanced Noise Cancellation

AI-Enhanced Noise Cancellation

Advanced Interactive Collaboration for Every Space

MeetingBoard Pro reimagines the meeting experience by combining premium video conferencing, collaborative whiteboarding, and professional audio into a unified platform. With support for native Teams and Zoom Rooms, USB BYOD and Windows OPS, powerful AI enhancements, and an intuitive touch interface, it drives productivity across small huddle areas to large conference spaces.

System Overview

  • Operating System: Android 13.0
  • Storage
    • Memory: 8GB
    • Flash: 64GB
  • CPU: 4 cores at 2.2GHz + 4 cores at 2.0GHz
  • AI Computing Power: 13.2T FLOPS

Display

  • Size:
    • MeetingBoard 65 Pro: 65 inch
    • MeetingBoard 75 Pro: 75 inch
    • MeetingBoard 86 Pro: 86 inch
  • Anti-glare panel
  • Resolution: 3840 x 2160
  • Color Gamut: 72% NTSC/99% sRGB
  • Color Depth: 1.07G (10 bit)
  • Contrast Ratio: 1200:1
  • Brightness: 400 cd/㎡
  • Refresh Rate: 60 Hz
  • Viewing Angle: 178°(H)/178°(V)
  • System wake-up: Motion sensor

Touch

  • Touch Technology: Infrared
  • Touch Height: 1.5 mm
  • Touch Accuracy: ±1 mm
  • Touch Points: 20 points
  • Touch latency: 21 ms(Measured under yealink whiteboard)
  • Four-level stylus

Camera

  • Max Resolution: Built-in triple 50MP camera
  • Image Sensor: Sony Sensor X3
  • Viewing angle: Wide-angle HFOV 98.2°
  • PTZ type: Electronic pan-tilt
  • Zoom/Digital zoom: 8 × digital zoom
  • Max resolution: 3840 x 2160
  • Max frame rate: 60Hz
  • Video output resolution: 3840 x 2160
  • Autofocus: Supported
  • Wide dynamic range: Supported
  • High dynamic range imaging: Supported
  • Exposure: Auto
  • White balance: Auto/Manual/ATW
  • Number of presets: 9
  • Privacy shutter: Electric privacy shutter
  • Swappable optical zoom camera module:
    • MB-12X Pro:
      • 8MP, Sony image sensor
      • 12x optical zoom
      • Lens angle: HFOV 90°
      • Horizontal rotation: ±100°
      • Vertical rotation: 0°/-90°
  • AI Smart Framing:
    • Auto framing
    • Speaker tracking
    • Picture-in-picture (PIP)
    • IntelliFocus
    • Video fence

Speakers

  • Speakers: Stereo Speakers
  • Frequency response: 90~20KHz
  • Sensitivity: 87±3 dB SPL@0.5m, 1W
  • Sampling rate: 48KHz
  • Expansion output: Supports RCA output
  • THD (Total Harmonic Distortion): at 20W, 1KHz, <5%
  • Rated impedance: tweeter-4ohm,full-range speaker-8ohm
  • Rated power: 30W
  • Max power: 36W

Microphones

  • Built-in 16 MEMS microphone array
  • Pickup distance: 12 meters full-duplex
  • Signal-to-noise ratio: 70dB@1KHz
  • Max sound pressure level: 130dB SPL
  • Equivalent noise level: 24dB SPL
  • Dynamic range: 24-130dB SPL
  • Sensitivity: -38±1dBV/Pa
  • Frequency response: 20Hz~20KHz
  • Sampling rate: 48KHz
  • Bit depth: 24-bit
  • Expansion input: supports RCA input

Video Resolution

  • Lens resolution: supports up to 4K30fps
  • Content sharing: supports up to 4K60fps (HDMI In) locally, and up to 4K15fps in meetings

Content Sharing

  • Wired screen sharing:
    • HDMI In
    • VCH51
  • Wireless screen sharing
    • AirPlay
    • Miracast
    • Wireless Presentation Pod (unavailable in the United States)

Audio Codec and Technology

  • Yealink AI Audio 2.1
    • Multi-channel echo cancellation processing
    • Noise suppression technology
    • Multi-channel reverberation cancellation technology
    • Multi-channel acoustic echo cancellation
    • Lip sync detection
    • Automatic gain control
    • Far-field full-duplex pickup technology
    • Beamforming directional pickup technology
    • CNG/PLC/AJB/De-Reverb

Video Codec and Technology

  • Video codecs: H.264 SVC, H.264 High Profile, H.264,

Network Protocols

  • Wi-Fi 6
    • 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax
    • 2x2 MIMO
  • Bluetooth 5.1
  • TCP/IP (IPv4/IPv6), DHCP/Static IP
  • HTTPS secure web access

Security

  • Encryption protocols: supports H.235/TLS/signaling encryption
  • Encryption algorithms: supports SRTP media stream encryption and AES-256 encryption
  • Security mechanisms: supports VLAN, 802.1P/Q, Diffserv, and other QoS services
  • Security protocols: supports 802.1X, LLDP-MED, and other network security protocols
  • Web security: supports HTTPS web security management
  • Secure connection: supports OpenVPN
  • Other security mechanisms:
    • Built-in security encryption certificate
    • Supports protection against network and protocol attacks
    • Supports meeting password to ensure meeting security
    • Supports meeting whitelist and blacklist

Configuration Management

  • Configuration methods: Web/Device/Touch screen
  • Debugging interface: RJ45/USB 2.0
  • Upgrade methods: Web/TAC/ZDM/USB
  • Device management: Yealink Management Cloud Service (YMCS), Microsoft Teams Admin Center (TAC), MTR Portal Management Platform (PMP), Zoom Device Platform (ZDM)
  • Batch deployment tool: supported
  • SNMP protocol: supported

Hardware Description

  • Power switch (with power status indicator light)
  • Reset button
  • 1 LED MUTE light
  • Human motion sensor (for automatic device wake-up)

Installation Methods

  • Wall-mounted installation
  • Wall-stand installation
  • Floor-stand installation

Hardware Interfaces

  • Display output interface: 1 x HDMI output interface (supports CEC)
  • Content input interface: 1 x HDMI input interface
  • Line input interface: 1 pair of RCA line inputs
  • Line output interface: 1 pair of RCA line outputs
  • 3 x USB-A 2.0 interfaces
  • 2 x 10/100/1000Mbps adaptive network ports
  • 2 x RJ45 VCH custom interfaces, for wired expansion microphones/wired sharing box, etc.
  • 1 x Windows OPS slot
  • 1 x AC power interface
  • 1 x USB-B touch output interface
  • 1 x Pluggable camera module interface (on the top)

Packaging

  • 1 x MeetingBoard Pro
  • 1 x Cable pack
    • 1 x 3m AC power cable
    • 1 x 3m CAT5E network cable
    • 4 x Stylus pens
    • 3 x Cable ties
    • 1 x Quick Start Guide
  • Note: MB-WallMount is sold separately and is not standard.

Environmental Factors

  • Operating humidity: 5~95%
  • Operating temperature: 0~40° C
  • Storage temperature: -20~60° C

Power Supply

  • Power Consumption
    • MeetingBoard 65 Pro
      • Max: 243W
      • Typical: 141W
    • MeetingBoard 75 Pro
      • Max: 277W
      • Typical: 164W
    • MeetingBoard 86 Pro
      • Max: 357W
      • Typical: 199W
  • Power adapter: 100-240V~50/60Hz
  • USB output: 5V~0.5A

Optional Accessories

  • Mounting Accessories:
    • Wall Mount
      • MB-WallMount-650: for 65 inch
      • MB-WallMount-860: for 75 inch & 86 inch
    • Wall Stand
      • MB-WallStand-650W: for 65 inch
      • MB-WallStand-860W: for 75 inch & 86 inch
    • Floor Stand
      • MB-FS-P650T: for 65 inch
      • MB-FS-P750T: for 75 inch
      • MB-FS-P860T: for 86 inch
      • MB-FS-Lift: for 65 inch, 75 inch & 86 inch
  • Audio Accessories:
    • Wired microphone: VCM35
    • Wireless microphone: VCM36-W
    • Ceiling speaker: CS10
    • Celling microphone: CM20
  • Casting Accessories:
    • Wireless presentation pod (unavailable in the United States)
    • Wired sharing box: VCH51
  • Camera Accessories:
    • Pluggable optical zoom camera module MB-12X Pro
    • Video conferencing camera UVC86
  • Controller:
    • Touch panel CTP25
    • Remote controller MB-Remote
  • Windows OPS Module:
    • MCore-OPS
    • MCore-OPS-T: Teams Certified
    • MCore-OPS-G2
    • MCore-OPS-G2T: Teams Certified

The Yealink MeetingBoard Pro is an all-in-one interactive collaboration hub combining a high-quality 4K whiteboard display, advanced conferencing cameras, powerful audio, and intelligent AI tools. Designed for hybrid workspaces of all sizes, it enables seamless meetings, rich teamwork, and engaging presentations, all from a single integrated solution.
