Features

Triple 50 MP Camera System

Triple 50 MP Camera System

Advanced AI Video Intelligence

Advanced AI Video Intelligence

16-Mic MEMS Audio Array

16-Mic MEMS Audio Array

Powerful MCore 4 Mini-PC

Powerful MCore 4 Mini-PC

MTouch Plus Touch Console

MTouch Plus Touch Console

Flexible Content Sharing

Flexible Content Sharing

Native Microsoft Teams Rooms Support

Native Microsoft Teams Rooms Support

Easy Deployment and Management

Easy Deployment and Management

AI-Powered Teams Solution for Modern Workspaces

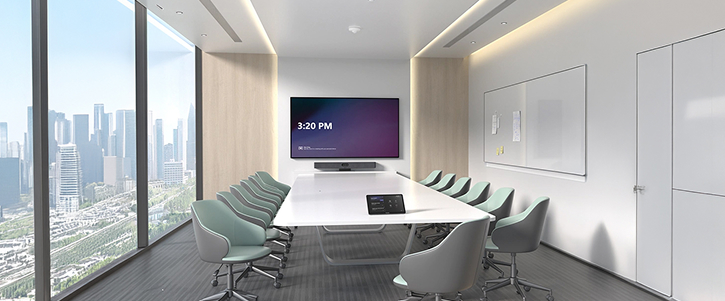

The Yealink MVC S50 is designed for small to medium meeting rooms. It is ideal for boardrooms, strategy discussions, training sessions, and hybrid collaboration environments where professional communication is critical. Its purpose is to deliver a native Microsoft Teams Rooms experience with intelligent triple-camera tracking, premium audio clarity, and seamless content sharing. The system ensures that every participant is clearly seen and heard, enhancing engagement, productivity, and overall meeting efficiency.

Yealink MVC S50 Microsoft Teams  System

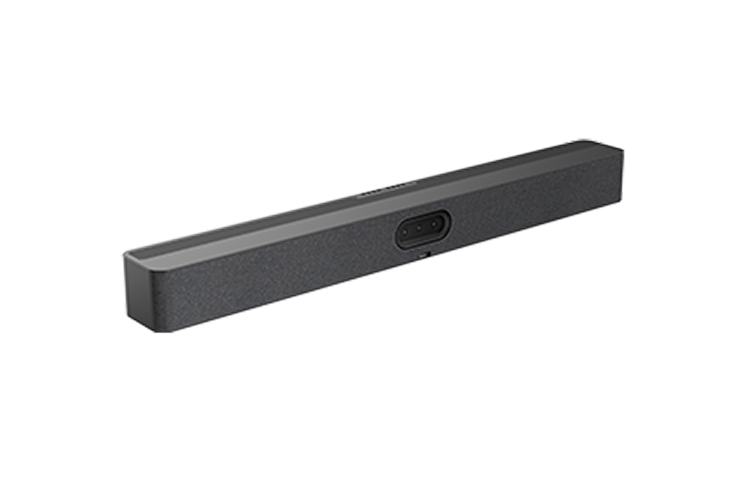

MeetingBar A50

  • Camera:
    • Number of preset positions: 9
    • Electronic gimbal
    • 1 x Wide HFOV 98°, VFOV 81°
    • 2 x Tele HFOV 41.6° VFOV 31.8°
    • 8 x digital zoom
  • Speaker:
    • Built-in 4 x 5W speakers
      • Rated Power: 4 x 5W
      • Maximum Power: 4 x 10W
    • Maximum sound pressure level: 97 dBSPL @ 10 W @ 1 m
    • Frequency response: 80-20kHz
    • Sensitivity: 104±3dB 1W/0.1m
    • Sampling rate: 48kHz
    • Sound emission angle: 0-180°
    • Total Harmonic Distortion (THD): <3% @1kHz (rated)
    • Rated impedance: 4 ohms
  • Microphone:
    • Built-in 16 MEMS microphone array, 10-meter pickup distance
    • Signal-to-noise ratio: 72dB@1kHz
    • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
    • Dynamic range: 22-108dBSPL
    • Sensitivity: -38dBV/Pa
    • Frequency response: 100-20kHz
    • Sampling rate: 48kHz
    • Bit depth: 32-bit
    • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
    • Noise suppression: AI-enhanced noise suppression
    • Expansion mics: Supports 3 expansion microphones
  • Interfaces:
    • 1 x USB3.0 Type-A port
    • 1 x USB3.0 Type-B port
    • 1 x USB2.0 Type-C port
    • 1 x Ethernet port
    • 2 x Yealink VCH port (RJ-45)
    • 1 x 3.5mm line-in & line-out port
    • 1 x power port
    • 1 x security lock slot
    • 1 x reset slot
    • 2 x HDMI-out
  • Dimensions and environmental factors:
    • MeetingBar A50: 910 × 88 × 102 mm
    • Operating humidity: 10 - 95%
    • Operating temperature: 0 - 40°C

Package Content

  • MCore 4
  • MTouch Plus
  • RoomSensor
  • MeetingBar A50, all-in-one video collaboration

Preload

  • Windows 11 IoT enterprise X64
  • Windows 11 IoT enterprise license
  • Microsoft Teams rooms app
  • Yealink RoomConnect

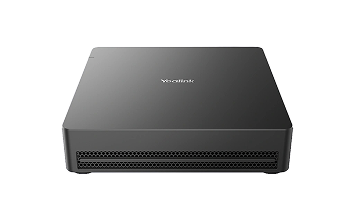

MCore 4, Gen-4 Mini-PC

  • Processor: Intel® Core™ Ultra 5 125H
  • Memory: 16GB(2*8GB) DDR5
  • Storage: 256GB SSD
  • BIOS features:
    • 3x HDMI video output
      • CEC
      • EDID
    • TPM2.0
    • Kernel DMA
  • Interfaces:
    • 1 x HDMI-Out 2.1 port
    • 2 x HDMI-Out 2.0 port
    • 1 x HDMI-In port
    • 4 x USB3.0 type-A port
    • 1 x MTouch port (RJ-45)
    • 1 x LAN port for AV network
    • 1 x 10/100/1000 Gigabit Ethernet port
    • 1 x power supply port
    • 1 x 3.5mm headphone port
    • 1 x reset port
    • 1 x security slot
    • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
    • Bluetooth: BT 5.2

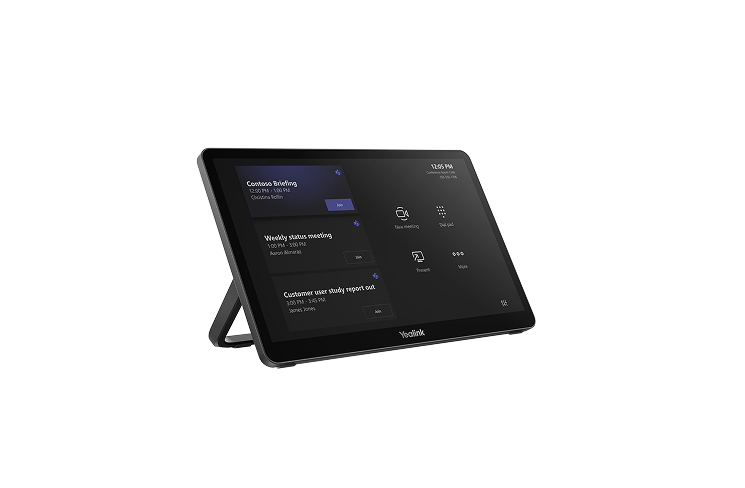

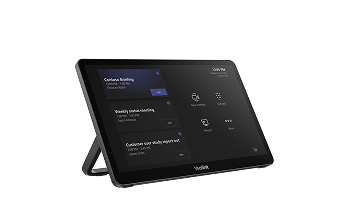

MTouch Plus

  • Physical features:
    • 11.6-inch narrow bezel IPS display
    • Angle between screen and desktop (30° ~ 70°)
    • Adjustable angle of support frame (50° ~ 180°)
  • Function features:
    • 1920 x 1080 video resolution
    • Support wired and wireless (with WPP30) content sharing
    • Support external PD power supply to power the sharing device
    • Support HDMI/USB-C video input
    • Support desktop placement, desktop fixed, and wall-mounted deployment

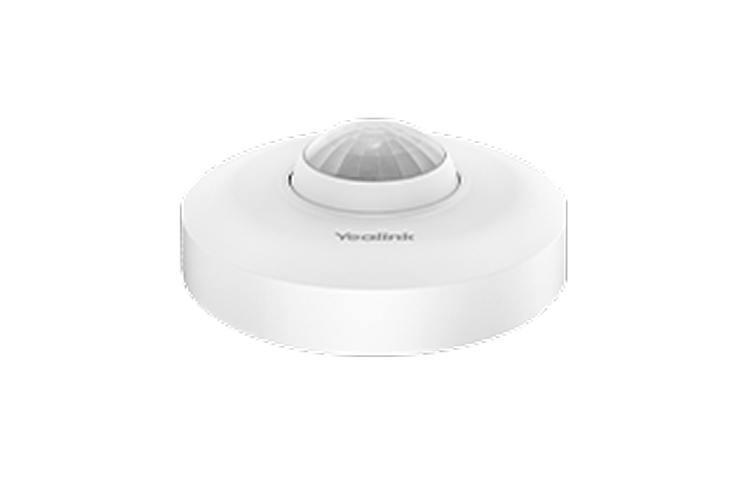

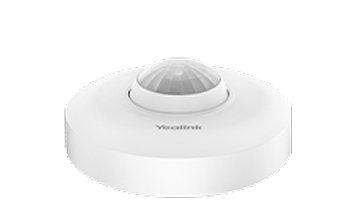

RoomSensor

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0°C-40°C
  • Operating humidity: 10%-95%

Yealink MVC S50 is an all-in-one Microsoft Teams Rooms solution designed for small to medium meeting spaces, delivering powerful performance and truly immersive collaboration. Its AI-powered triple-camera system with IntelliFocus and speaker tracking ensures every participant is clearly seen and perfectly framed. Professional-grade, full-duplex audio captures voices with exceptional clarity. Powered by the MCore computing unit and controlled through the intuitive MTouch panel.

Specifications

MeetingBar A50

  • Camera:
    • Number of preset positions: 9
    • Electronic gimbal
    • 1 x Wide HFOV 98°, VFOV 81°
    • 2 x Tele HFOV 41.6° VFOV 31.8°
    • 8 x digital zoom
  • Speaker:
    • Built-in 4 x 5W speakers
      • Rated Power: 4 x 5W
      • Maximum Power: 4 x 10W
    • Maximum sound pressure level: 97 dBSPL @ 10 W @ 1 m
    • Frequency response: 80-20kHz
    • Sensitivity: 104±3dB 1W/0.1m
    • Sampling rate: 48kHz
    • Sound emission angle: 0-180°
    • Total Harmonic Distortion (THD): <3% @1kHz (rated)
    • Rated impedance: 4 ohms
  • Microphone:
    • Built-in 16 MEMS microphone array, 10-meter pickup distance
    • Signal-to-noise ratio: 72dB@1kHz
    • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone)
    • Dynamic range: 22-108dBSPL
    • Sensitivity: -38dBV/Pa
    • Frequency response: 100-20kHz
    • Sampling rate: 48kHz
    • Bit depth: 32-bit
    • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
    • Noise suppression: AI-enhanced noise suppression
    • Expansion mics: Supports 3 expansion microphones
  • Interfaces:
    • 1 x USB3.0 Type-A port
    • 1 x USB3.0 Type-B port
    • 1 x USB2.0 Type-C port
    • 1 x Ethernet port
    • 2 x Yealink VCH port (RJ-45)
    • 1 x 3.5mm line-in & line-out port
    • 1 x power port
    • 1 x security lock slot
    • 1 x reset slot
    • 2 x HDMI-out
  • Dimensions and environmental factors:
    • MeetingBar A50: 910 × 88 × 102 mm
    • Operating humidity: 10 - 95%
    • Operating temperature: 0 - 40°C

Package Content

  • MCore 4
  • MTouch Plus
  • RoomSensor
  • MeetingBar A50, all-in-one video collaboration

Preload

  • Windows 11 IoT enterprise X64
  • Windows 11 IoT enterprise license
  • Microsoft Teams rooms app
  • Yealink RoomConnect

MCore 4, Gen-4 Mini-PC

  • Processor: Intel® Core™ Ultra 5 125H
  • Memory: 16GB(2*8GB) DDR5
  • Storage: 256GB SSD
  • BIOS features:
    • 3x HDMI video output
      • CEC
      • EDID
    • TPM2.0
    • Kernel DMA
  • Interfaces:
    • 1 x HDMI-Out 2.1 port
    • 2 x HDMI-Out 2.0 port
    • 1 x HDMI-In port
    • 4 x USB3.0 type-A port
    • 1 x MTouch port (RJ-45)
    • 1 x LAN port for AV network
    • 1 x 10/100/1000 Gigabit Ethernet port
    • 1 x power supply port
    • 1 x 3.5mm headphone port
    • 1 x reset port
    • 1 x security slot
    • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
    • Bluetooth: BT 5.2

MTouch Plus

  • Physical features:
    • 11.6-inch narrow bezel IPS display
    • Angle between screen and desktop (30° ~ 70°)
    • Adjustable angle of support frame (50° ~ 180°)
  • Function features:
    • 1920 x 1080 video resolution
    • Support wired and wireless (with WPP30) content sharing
    • Support external PD power supply to power the sharing device
    • Support HDMI/USB-C video input
    • Support desktop placement, desktop fixed, and wall-mounted deployment

RoomSensor

  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0°C-40°C
  • Operating humidity: 10%-95%

Description

+

Yealink MVC S50 is an all-in-one Microsoft Teams Rooms solution designed for small to medium meeting spaces, delivering powerful performance and truly immersive collaboration. Its AI-powered triple-camera system with IntelliFocus and speaker tracking ensures every participant is clearly seen and perfectly framed. Professional-grade, full-duplex audio captures voices with exceptional clarity. Powered by the MCore computing unit and controlled through the intuitive MTouch panel.
