Package Content

MCore Mini-PC

MCore Mini-PC

MTouch E2 Touch Panel

MTouch E2 Touch Panel

UVC84 USB PTZ camera

UVC84 USB PTZ camera

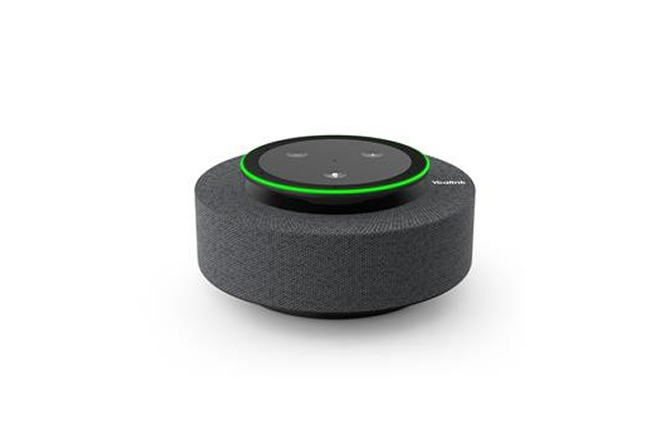

MSpeech smart USB speakerphone

MSpeech smart USB speakerphone

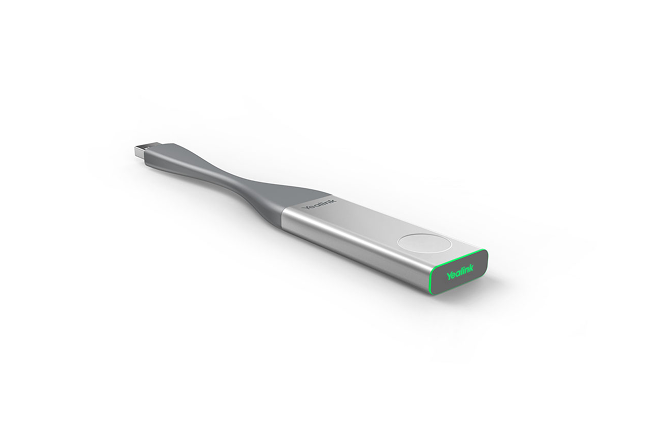

WPP20 wireless presentation pod

WPP20 wireless presentation pod

CPW65

CPW65

Features

Wireless Content Sharing

Wireless Content Sharing

Seamless Audio Pickup

Seamless Audio Pickup

4K Camera with Auto-Framing

4K Camera with Auto-Framing

Powerful Performance

Powerful Performance

Intuitive Control

Intuitive Control

Auto-Awake Functionality

Auto-Awake Functionality

Transform Your Medium-Sized Conference Rooms with Seamless Collaboration

The Yealink MVC640 Microsoft Teams Room System empowers medium-sized conference rooms with a complete and easy-to-use collaboration solution. AI-enhanced features, superior audio/video, and wireless flexibility create engaging and productive meeting experiences.

Yealink MVC640 Microsoft Teams Room

Package Content

  • MCore Pro, Gen-3 Mini-PC
  • MTouch E2, Gen-3 touch panel
  • UVC84 USB PTZ camera
  • MSpeaker II (optional)
  • CPW65 DECT wireless microphone (optional)
  • VCM36-W Wi-Fi wireless microphone (optional)
  • WPP30 wireless presentation pod (optional)

Preload

  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
  • Yealink RoomConnect
  • *Windows 11 will be supported in 23H2

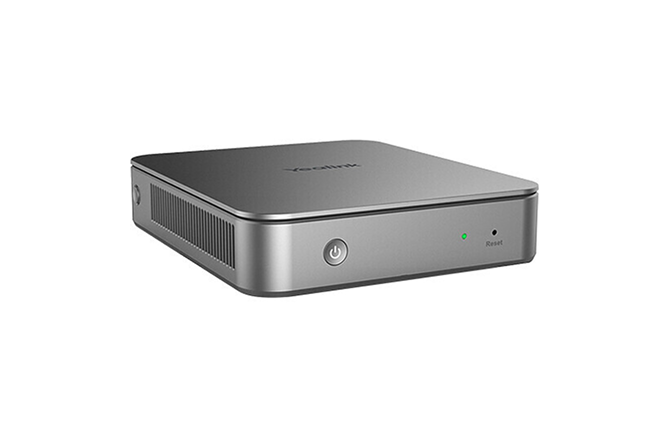

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management

MSpeaker II (optional)

  • Frequency response: 106Hz-20 KHZ
  • Maximum Loud Pressure level: 88±3dB@8W / 1M
  • Sensitivity: 79±3dB@1W/1M
  • S/N: ≥70dB
  • 3.5mm linear input interface

VCM36-W(optional)

  • Built-in three-wheat matrix
  • 360° omnidirectional pickup
  • Signal to Noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD< 3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • 2-meter radius full duplex range
  • 6 m pickup radius
  • 2450mAh battery with wireless charging
  • 7 days standby time, up to 12 hours of continuous use
  • Two-color LED capacitive touch mute button

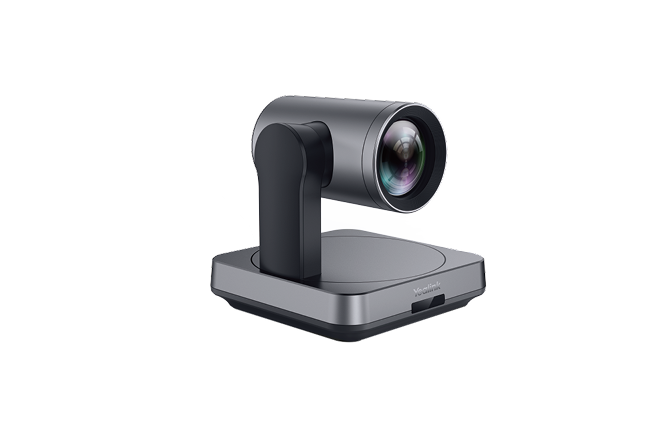

UVC84 USB PTZ camera

  • 4K Sensor
  • 12x optical zoom
  • Field of view (diagonal): 80°
  • Auto Framing
  • Camera presets
  • Pan range: 200°
  • Tilt range: 130°
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

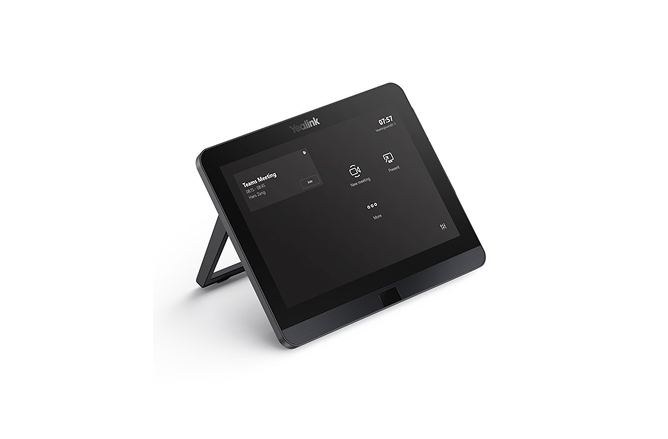

MTouch E2 touch panel

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5 mm headset jack
  • Angle adjustable bracket (28° - 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in Wi-Fi AP for Yealink wireless presentation device
  • HDMI/USB-C HD video input

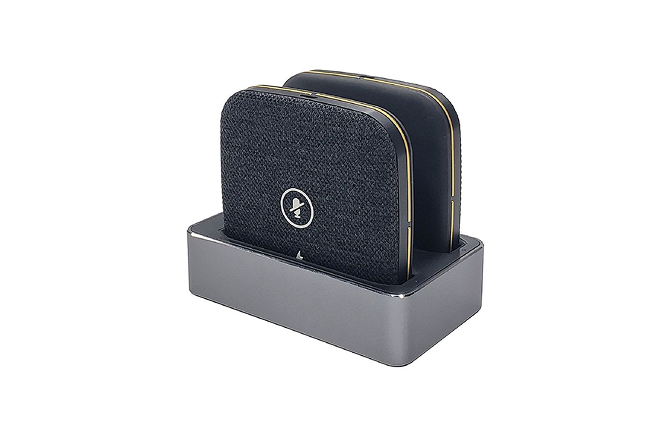

CPW65 (optional)

  • 360° omnidirectional pickup
  • Signal-to-noise ratio: 65dB SPL@1KHz,A-weighted
  • Loudest Pressure level: 110dB@1KHz, THD< 3%
  • Equivalent noise: -110dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -32db+/-2
  • Frequency response: 100Hz-8KHz
  • 2-meter radius full duplex range
  • 6 m pickup radius
  • Use Yealink WDD60 for pairing
  • Two-color LED capacitive touch mute button

Package Features

  • N.W/CTN: 7.7 Kg
  • G.W/CTN: 8.4 Kg
  • Carton Meas: 595 mm x 393 mm x 258 mm

Optimized for Microsoft Teams environments, the Yealink MVC640 takes the complexity out of meeting room setup. Experience stunning 4K visuals, crystal-clear audio, and smart features like auto-framing and noise reduction that keep everyone in focus and free from background distractions. The included touch panel and optional content sharing pod ensure effortless meeting management and seamless teamwork.
