Package Content

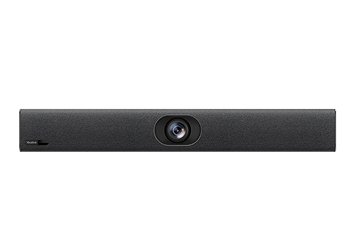

UVC40 E2 all-in-one USB video bar

UVC40 E2 all-in-one USB video bar

VCR20 Remote Control

VCR20 Remote Control

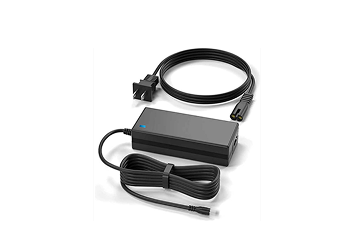

Power Adapter

Power Adapter

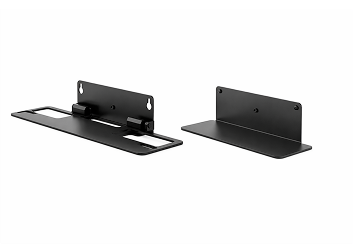

Wall Bracket and Accessories

Wall Bracket and Accessories

Features

Ultra-HD 4K Camera

Ultra-HD 4K Camera

Wide-Angle Lens (120°)

Wide-Angle Lens (120°)

Electric Privacy Shutter

Electric Privacy Shutter

5 X e-PTZ Camera

5 X e-PTZ Camera

Auto Framing

Auto Framing

Speaker Tracking

Speaker Tracking

Smart Area Exposure

Smart Area Exposure

Remote Device Management

Remote Device Management

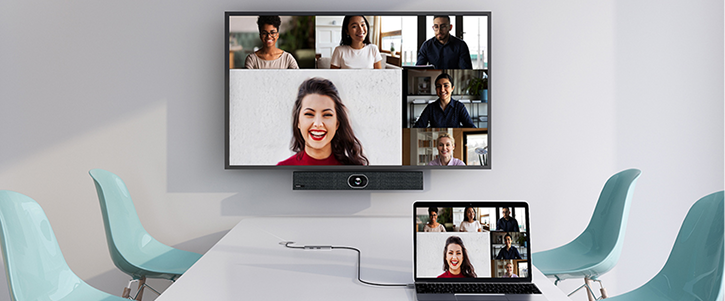

Designed for Compact Meeting Spaces

The Yealink UVC40 E2 is designed for small meeting spaces and huddle rooms, making it ideal for collaborative work, client presentations, and team brainstorming sessions. Its 4K ultra-HD camera with a super-wide 120° field of view ensures every participant is clearly visible, while AI-powered auto-framing and speaker tracking keep the focus on the active speaker. The integrated microphones and high-fidelity speakers deliver clear audio, eliminating the need for additional equipment. With plug-and-play USB connectivity and support for Microsoft Teams and Zooms Rooms, it quickly converts small rooms into efficient, professional meeting spaces.

Camera

  • 8MP Camera with SONY 1/1.8-inch CMOS
  • 120° Ultra-Wide Field of View
  • 5x e-PTZ camera
  • Electric lens cap
  • Camera presets
  • Video Output Maximum Resolution: 4K30fps

Audio

  • Built-in 8 MEMS microphone array
  • Voice pickup distance: 6 m
  • Signal-to-Noise Ratio: 72dB
  • Dynamic Range: 22-130dB
  • Sensitivity: -38dbv/pa
  • Frequency Response: 50-20kHz
  • Sampling Rate: 48kHz
  • Bit Depth: 32bit

Speaker

  • Built-in 5W High-Fidelity Speaker
  • Frequency Response: 105-20kHz
  • Sensitivity: 90dB SPL @ 1W
  • Sampling Rate: 48kHz
  • Sound emission angle: Forward-facing
  • Total Harmonic Distortion (THD): at 5W, 1kHz, <5%
  • Rated Impedance: 4 ohms
  • Rated Power: 5W
  • Maximum Power: 7W

Audio Codec and Technology

  • Intelligent Noise Cancellation Technology (Yealink Proprietary)
  • Noise Suppression
  • Echo Cancellation
  • Acoustic Echo Cancellation
  • Automatic Lip Sync Detection
  • Automatic Gain Control
  • Full-Duplex Technology

AI Technologies

  • Auto Framing
  • Speaker Tracking
  • Smart Area Exposure

System Requirement

  • Windows 7, Windows 10, Mac OS 10.10 or Higher
  • Support for standard audio and video device drivers
    • UAC1.0
    • UVC1.0

Physical Interfaces

  • 1 x USB3.0 Type-B port
  • 1 x USB2.0 Type-A port
  • 1 x Yealink microphone port (RJ-45, it can be switched to Ethernet connection for wired network connectivity)
  • 1 x Power port (48V/0.7A)
  • 1 x Security lock slot
  • 1 x Reset slot
  • Built-in Wi-Fi

Manageability

  • Yealink RoomConnect management tool
  • Yealink Management Cloud Service/Device Management Platform

Power Supply

  • Power Consumption
    • Average: 10.5W
    • Peak: 12.428W
    • Standby: 9.56W
  • Power Adapter: AC 100~240V Input, DC 48V/0.7A Output
  • USB Output: 5V
  • Supports PSE: 48V Output

Compatibility

  • UVC40 E2 applies to most video conferencing platforms, including but not limited to the following:
    • Microsoft Teams
    • Zoom Room

Product Feature

  • UVC40 E2: 600 mm x 68 mm x 82 mm
  • Weight: 1.37 kg N.W/CTN: 13 Kg
  • Wall Bracket: 127.5 mm x 143 mm x 82 mm

Package Feature

  • Giftbox Size: 674mm x 136mm x 195mm
  • Carton Size: 685mm x 290mm x 397mm
  • N.W/CTN: 13 Kg
  • N.W/CTN: 14 Kg
  • Quantity: 4

Other Physical Features

  • External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
  • Operating humidity: 10 - 95%
  • Operating temperature: 0 - 40℃
  • Storage temperature: -30℃~70℃

The Yealink UVC40 E2 is an all-in-one intelligent video bar with a 4K ultra-HD camera, 120° wide view, and AI-powered auto-framing and speaker tracking for every participant. Its built-in microphones, high-fidelity speaker, electric privacy lens cap, and plug-and-play USB make it perfect for small and huddle rooms. Compatible with Microsoft Teams and Zoom Rooms and most major video conferencing platforms.

Specifications

Camera

  • 8MP Camera with SONY 1/1.8-inch CMOS
  • 120° Ultra-Wide Field of View
  • 5x e-PTZ camera
  • Electric lens cap
  • Camera presets
  • Video Output Maximum Resolution: 4K30fps

Audio

  • Built-in 8 MEMS microphone array
  • Voice pickup distance: 6 m
  • Signal-to-Noise Ratio: 72dB
  • Dynamic Range: 22-130dB
  • Sensitivity: -38dbv/pa
  • Frequency Response: 50-20kHz
  • Sampling Rate: 48kHz
  • Bit Depth: 32bit

Speaker

  • Built-in 5W High-Fidelity Speaker
  • Frequency Response: 105-20kHz
  • Sensitivity: 90dB SPL @ 1W
  • Sampling Rate: 48kHz
  • Sound emission angle: Forward-facing
  • Total Harmonic Distortion (THD): at 5W, 1kHz, <5%
  • Rated Impedance: 4 ohms
  • Rated Power: 5W
  • Maximum Power: 7W

Audio Codec and Technology

  • Intelligent Noise Cancellation Technology (Yealink Proprietary)
  • Noise Suppression
  • Echo Cancellation
  • Acoustic Echo Cancellation
  • Automatic Lip Sync Detection
  • Automatic Gain Control
  • Full-Duplex Technology

AI Technologies

  • Auto Framing
  • Speaker Tracking
  • Smart Area Exposure

System Requirement

  • Windows 7, Windows 10, Mac OS 10.10 or Higher
  • Support for standard audio and video device drivers
    • UAC1.0
    • UVC1.0

Physical Interfaces

  • 1 x USB3.0 Type-B port
  • 1 x USB2.0 Type-A port
  • 1 x Yealink microphone port (RJ-45, it can be switched to Ethernet connection for wired network connectivity)
  • 1 x Power port (48V/0.7A)
  • 1 x Security lock slot
  • 1 x Reset slot
  • Built-in Wi-Fi

Manageability

  • Yealink RoomConnect management tool
  • Yealink Management Cloud Service/Device Management Platform

Power Supply

  • Power Consumption
    • Average: 10.5W
    • Peak: 12.428W
    • Standby: 9.56W
  • Power Adapter: AC 100~240V Input, DC 48V/0.7A Output
  • USB Output: 5V
  • Supports PSE: 48V Output

Compatibility

  • UVC40 E2 applies to most video conferencing platforms, including but not limited to the following:
    • Microsoft Teams
    • Zoom Room

Product Feature

  • UVC40 E2: 600 mm x 68 mm x 82 mm
  • Weight: 1.37 kg N.W/CTN: 13 Kg
  • Wall Bracket: 127.5 mm x 143 mm x 82 mm

Package Feature

  • Giftbox Size: 674mm x 136mm x 195mm
  • Carton Size: 685mm x 290mm x 397mm
  • N.W/CTN: 13 Kg
  • N.W/CTN: 14 Kg
  • Quantity: 4

Other Physical Features

  • External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
  • Operating humidity: 10 - 95%
  • Operating temperature: 0 - 40℃
  • Storage temperature: -30℃~70℃

Description

+

The Yealink UVC40 E2 is an all-in-one intelligent video bar with a 4K ultra-HD camera, 120° wide view, and AI-powered auto-framing and speaker tracking for every participant. Its built-in microphones, high-fidelity speaker, electric privacy lens cap, and plug-and-play USB make it perfect for small and huddle rooms. Compatible with Microsoft Teams and Zoom Rooms and most major video conferencing platforms.
