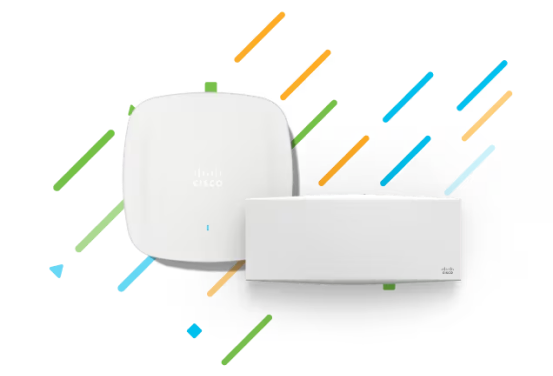

Cisco Meraki MR44 Access Points

Enterprise-Class Wi-Fi 6 Access Point with Multigigabit Ethernet

Availability Status : In Stock

Model : Meraki MR44
Deployment : Indoor
Standard : IEEE 802.11ax (Wi-Fi 6)
Radio Specification : 4 Radio - 2.4 GHz, 5 GHz, Security Radio, and BLE 2.4 GHz Radio : 2x2 MU-MIMO with Two Spatial Streams : 4x4 MU-MIMO with Four Spatial Streams
Management : Meraki Cloud Dashboard : Meraki Systems Manager

Make an Enquiry Free Consultation

Genuine
Products

Assured
Quality

Product
Traininig

Installation, Maintenance & Support

Cloud-Managed Access Points for Wireless Connectivity in High-Density Environments

The Cisco Meraki MR44 access point’s Wi-Fi 6 capabilities with advanced security and user-friendly cloud management, ensure seamless and hassle-free networking. The MR44 is an ideal choice for retail spaces, colleges, and offices, as it is a future-ready networking solution with reliable features necessary to handle high-density environments.

Features

High Throughput

The aggregate frame rate of up to 2.7 Gbps ensures the smooth operation of bandwidth-intensive applications.

802.11ax Technology

Supports MU-MIMO and OFDMA to facilitate the simultaneous transmission of data to multiple mobile devices.

Dedicated Security Radio

24/7 WIDS/WIPS scanning and RF analysis for real-time threat detection without affecting device performance.

Integrated Bluetooth Radio

BLE beaconing ability allows devices to interact with their surroundings, supporting location-based services.

Automated RF Optimization

Automatic channel selection, data transmission, and settings configuration with RF-optimized data from cloud.

Enterprise-Grade Security

AES encryption and 802.1X with Active Directory offer wired-like security, ensuring secure configuration.

Application-Aware Traffic Shaping

Layer 7 to enable QoS, based on traffic type, prioritizing critical apps, and limiting recreational traffic.

Advanced Analytics

Drilling into network usage gives granular traffic analytics, with enhanced visibility via journey tracking.

Radios :
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
- Concurrent operation of all four radios
- Supported frequency bands (country-specific restrictions apply):
Antenna :
- Internal Antenna (5.1dBi max gain at 2.4 GHz, 5.9dBi max gain at 5 GHz)
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities :
- DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**
- 2.4GHz: 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
- 5GHz: 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
- SU-MIMO, UL MU-MIMO** and DL MU-MIMO support
- Maximal ratio combining (MRC) & beamforming
- 20 and 40 MHz* channels (802.11n); 20, 40*, and 80 MHz channels (802.11ac Wave 2); 20, 40* and 80 MHz channels (802.11ax)
- Note: *40MHz channels are supported only in the 5GHz band.
- Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
- Packet aggregation
Power :
- Power over Ethernet: 42.5 - 57 V (802.3at) or 37 - 57 V (802.3af) - low power mode**
- Alternative: 12 V DC input
- Power consumption: 30W max (802.3at) or 15W max (802.3af) - low power mode**
- Power over Ethernet injector and DC adapter sold separately
- Note: Actual power consumption may vary depending on the AP usage.
In low power mode, MR44 will:
- Downshift its Ethernet uplink speed from 2.5 Gbps to 1 Gbps
- Transition from 4x4:4 to 2x2:2 in 5GHz
- Disable its dedicated IoT (previously known as BLE) radio
- Disable its dedicated Scanning Radio
- Reduce the max Tx power
Warning: Please ensure that MR44 is connected to an 802.3at-capable (PoE+) switch/power injector during the initial installation or ensure that the network the MR44 is added to is set to MR 27.6 or newer firmware.

Using 802.3af switch/power injector with MR44 set to 27.5/27.5.1 or lower firmware might result in unexpected behaviors including reboots or degraded performance.
Interfaces :
- 1x 100/1000/2.5G BASE-T Ethernet (RJ45)
- 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Mounting :
- All standard mounting hardware included
- Desktop, ceiling, and wall mount capable
- Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
- Bubble level on the mounting cradle for accurate horizontal wall mounting

Physical Security :
- Two security screw options (included) (13.5 mm long and 2.5 mm diameter and 5 mm head)
- Kensington lock hard point
- Concealed mount plate with anti-tamper cable bay
Environment :
- Operating altitude: Up to 40,000 feet (12,192 meters)
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
Reliability :
- Mean Time Between Failure (MTBF): 500,000 hours at +25°C operating temperature
Physical Dimensions :
- 12.05" × 5.06" × 1.74" (30.6 cm × 12.84 cm × 4.43 cm), not including desk mount feet or mount plate
- Weight: 26.07 oz (739 g)
Security :
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1q) and tunneling with IPsec VPN
- PCI compliance reporting
- WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
- Cisco ISE integration for Guest access and BYOD Posturing
Quality of Service :
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
Mobility :
- PMK, OKC, & 802.11r for fast Layer 2 roaming
- Distributed or centralized layer 3 roaming
Analytics :
- Embedded location analytics reporting and device tracking
- Global L7 traffic analytics reporting per network, per device, & per application
LED Indicators :
- 1 power/booting/firmware upgrade status
Regulatory :
- RoHS
- For additional country-specific regulatory information, please contact Meraki sales
Warranty :
- Indoor access point
- Lifetime hardware warranty with advanced replacement included
Ordering Information :
- MR44-HW: Meraki MR44 Cloud Managed 802.11ax AP
- MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)
- MA-INJ-4: Meraki MR 802.3at PoE Injector (Power Cord Not Included)
- MA-INJ-6: Meraki MR MultiGigabit 802.3bt Injector (Power Cord Not Included)
- Note: Meraki access point license required

The Cisco Meraki MR44 is a quad-radio access point with dual client-serving radios (2.4 GHz and 5 GHz), a dedicated security radio, and a Bluetooth radio, ensuring interference-free high-speed networking in dense environments. The Meraki dashboard integration allows monitoring, automating RF optimization, adjusting power and channel settings, troubleshooting and more through its intuitive cloud gateway. The MR44 offers secure connectivity with AES encryption, 802.1X authentication, and guest isolation. PCI compliance reports ensure secure retail deployments, while advanced features deliver wired-like security and easy configuration for employees and guests. Meraki Systems Manager integrates with MR44 for automatic security, rapid MDM deployment, and dynamic policy enforcement by client posture.

Frequently
Asked Questions (FAQs)

How does the Cisco MR44 HW guarantee secure wireless performance?

The Cisco Meraki MR44 HW implements a variety of sophisticated security protocols to protect the wireless network. A dedicated third radio enables the device to perpetually monitor for threats and mitigate risks with a 24/7 Wireless Intrusion Detection and Prevention System (WIDS/WIPS). AES encryption is also supported, guaranteeing the security and encryption of data transmitted across the network. To know more about security features, check out Cisco MR44 datasheet.

In which environments is the Cisco Meraki MR44 AP appropriate?

The MR44 access points are customized to satisfy the requirements of high-density environments that prioritize performance and reliability. MR44 PoE is an exceptional option for hotels, retailers, colleges, hospitals, and offices, as it offers reliable wireless coverage in areas with high user density. 802.1X authentication for secure access control and PCI compliance make it suitable for environments that require strict data protection standards. You can choose features based on the environmental requirements which will be reflected in the Cisco Meraki MR44 price. Meraki MR44 installation guide will walk you through the intuitive setup procedures.

How can we deploy the Cisco MR44 WiFi 6 access point?

Yes, the Cisco Meraki MR44 access point is designed for quick and easy plug-and-play deployment. After connecting to the network, it syncs with the Meraki Cloud and automatically downloads necessary configurations and firmware upgrades. Cloud management simplifies network installations, allowing IT teams to deploy and manage many devices in multiple locations.

Does the Cisco Meraki MR44 handle voice and video traffic?

Yes, the MR44 can manage audio and video traffic, which are sensitive to latency and network congestion. It prioritizes speech and video packets over less time-sensitive data using QoS features including WMM access categories, 802.1p, and DSCP. Even in busy areas with many users, this ensures seamless, high-quality audio and video connections.

Is it possible to deploy the MR44 in outdoor settings?

No, MR44 HW is specifically engineered for indoor use in high-density environments, supporting voice, video, and data traffic. For outdoor functionality in warehouses, and huge campuses, Meraki offers outdoor-rated models like the Meraki MR76 and MR86, featuring rough, weather-resistant casings.

What is the coverage area of the Meraki MR44 access point?

We can’t guarantee a specific Meraki MR44 coverage area as it might change depending on building architecture and interference. But its quad-radio design, which includes 2.4 GHz and 5 GHz client-serving radios, offers reliable, interference-free coverage in medium to large interior environments. The high speed and Wi-Fi 6 capabilities ensure smooth communication even across wide areas.
