Yealink RoomPanel for Scheduling Next-level Meetings

Yealink
RoomPanel

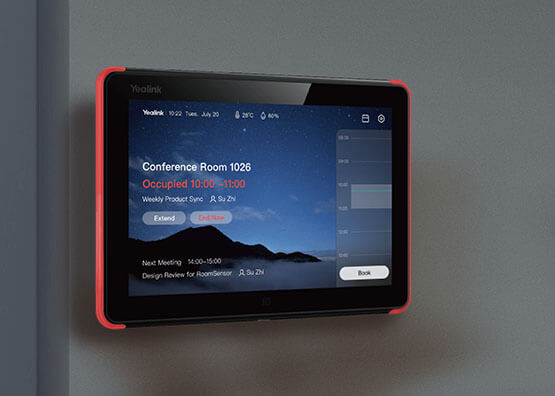

Yealink RoomPanel is a professional multi-function room scheduling device with 8-inch touch screen, Android 9.0 OS, full-RGB LED, dual microphone and speakerphones array. The all-in-one panel not only displays the room status, but also allows for reservations of all meeting rooms within the organization.

Key Features and Benefits

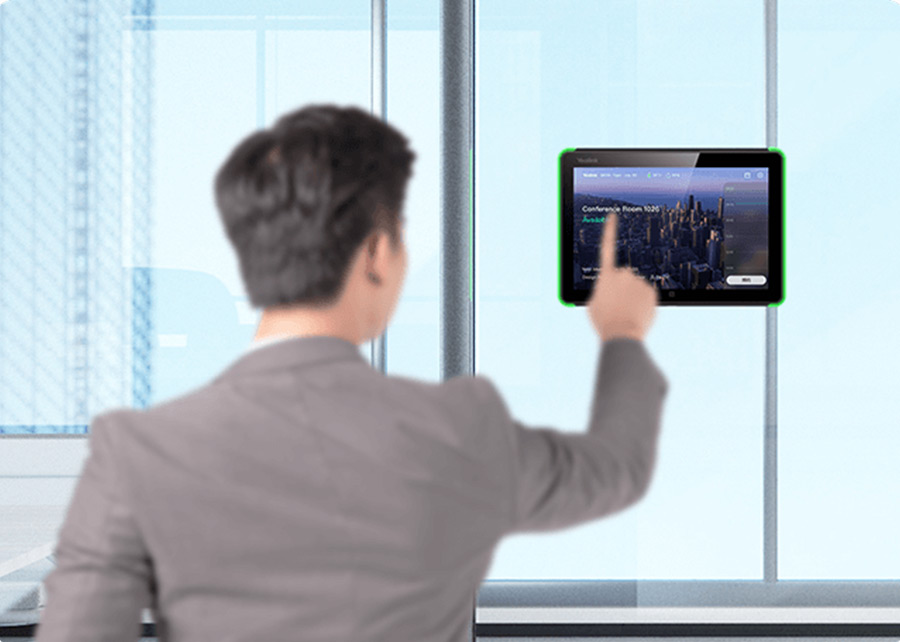

8-Inch 10-Point Interactive Panel

10-Point touch capability screen to easily book rooms or check-in/out at room panel.

Anti Fingerprint Screen

Keep the screen clean and free from fingerprints and oil stains.

Any Walls, and Tilt Optional

Provide brackets and 3M velcro. Compatible with electrical box, glass and wood, etc., with optional parallel or tilt angle.

802.11ac Wi-Fi

Support wireless network deployment and anti-jamming Wi-Fi.

Orientation Optional

Easy to mount with portrait or landscape.

RFID & NFC Embedded

Enhance ID authorization security and track meeting
attendees.

High Visibility LED Bars out Room Status

Full RGB LED bars for immediate all-round visible
communication of room status.

PoE or DC Power

Minimalist and flexible installation, keep workspace tidy
and modern.

Actions with Occupancy Sensor

Actions with the room occupancy sensor, such as
automatic release, automatic check-in, etc.

Ambient Light & Proximity Sensor Embedded

Environment self-adaptation. Automatically adjust the
screen brightness and automatically wake up the
screen.

Remote Device Management

Easily monitor, manage, and diagnose by Yealink
Management Cloud Server.

Extensive APP compatibility

Support the integration of third-party APP applications.

Yealink Room Panel Specifications

Basic

Operating System: Android 9

Display

Size: 8" LCD Panel (16:10)
Resolution: 1280x800
Contrast: 1000:1
Viewing Angle(H/V): ±80°/±80°
10 points capacitive multi-touch
Anti-fingerprint Coating
Proximity Sensor: Yes
Ambient Light Sensor: Yes

Audio

Microphone: 2 x Array Microphones
Speaker: 2 x 1 Watt Speakers

Mounting

Surface mount for 2-gang US electrical box
20° tilt mount kit for wall or glass
Flush mount kit for wall or glass

Power Supply

Power over Ethernet (IEEE 802.3af)
12V Power Adapter

Connectivity

Ethernet: 1 x Fast ethernet port (10/100Mbps)
Wi-Fi: 802.11a/b/g/n/ac
Bluetooth: 5.0
RFID/NFC: 13.56MHz
USB Port: 1 x USB-C port
Button: 1 x Reset pin hole

Dimensions

Display size (mm): 209 x 146 (8.23” x 4.06”)
Weight: 0.53kg (1.168 lb)

Dedicated Interface,
Modern Stylish Design

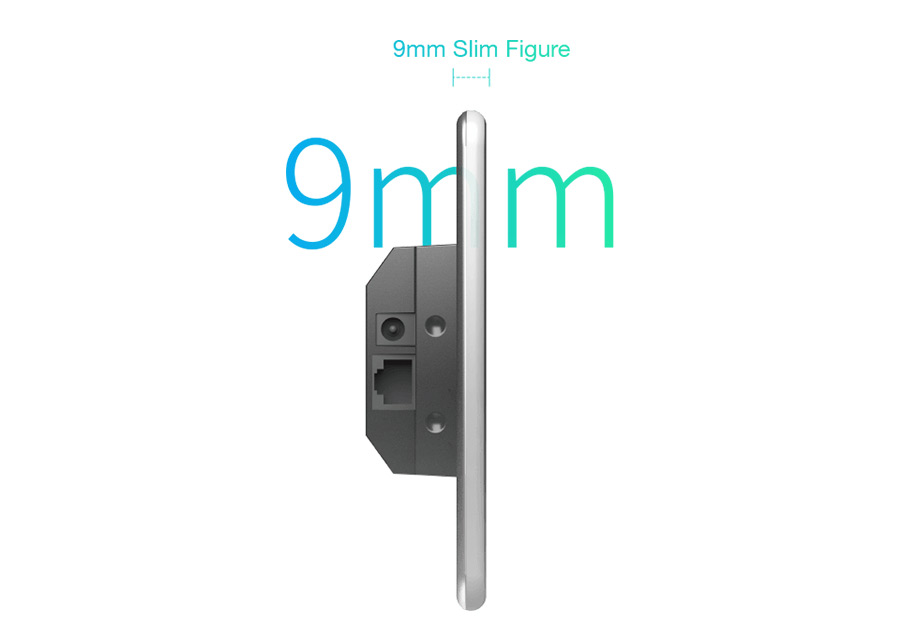

Slim and compact, along with elegant and metal appearance, the panel is ideal and congruent for modern workspaces. It also brings superior visual and interactive experience on the 8-inch touchscreen with anti-fingerprint craft as well as the light and proximity sensor.

Perform with
Enterprise-grade Capabilities

Support dual-band 802.11ac 2x2 MIMO Wi-Fi module for wireless deployment with enhanced network stability and efficiency.
Embedded dual Bluetooth 5.0 chipsets for extended features such as Bluetooth gateway - pairing with RoomSensor to enable auto reserve/release*.
Support NFC/RFID for advanced ID authorization and attendee check-in*.
Built-in microphone array and dual speakerphones for future expansions like virtual assistants, administrator call, etc.

Broad
Platform Compatibilities

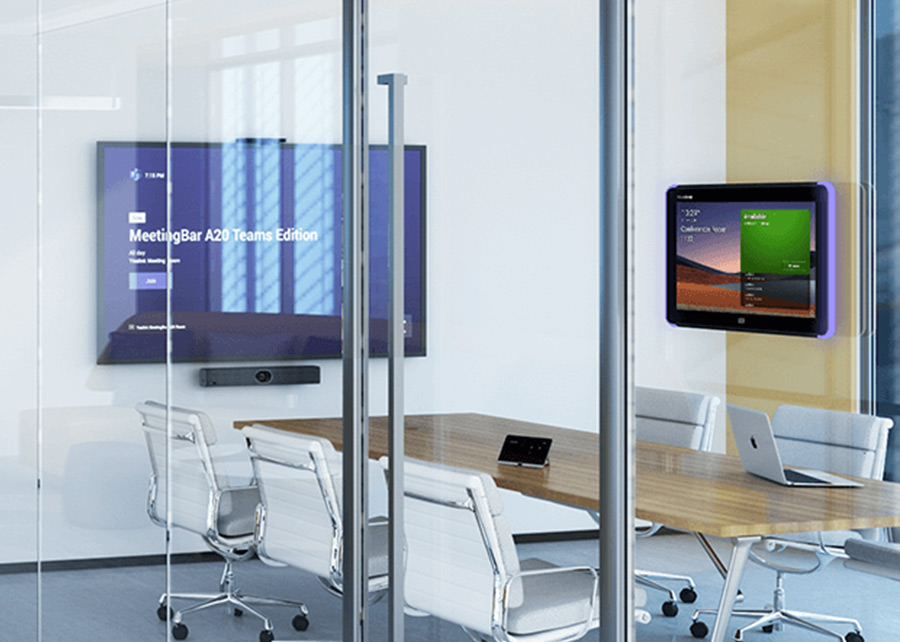

Compatible with Yealink Workspace Management Platform, Microsoft Teams and other third-party meeting platforms, the RoomPanel offers experiences of your choice for various meeting scenarios and environments.
