SMB Network Security: Powerful Protection for Your Business

The Sophos XGS 116 and XGS 116w are network security appliances designed for use in small to medium-sized businesses, educational institutions, and other organizations requiring high end protection against cyber threats. These devices offer advanced firewall capabilities, intrusion prevention, web filtering, and other security features to safeguard networks from malicious activities and unauthorized access. The XGS 116w additionally provides Wi-Fi connectivity, making it suitable for environments where wireless networking is essential. With their comprehensive security functionalities, these appliances contribute to creating a secure and stable network infrastructure, helping businesses and institutions maintain the integrity and confidentiality of their data and communications.

Sophos XGS 116

Performance

  • Firewall throughput : 7,700 Mbps
  • Firewall IMIX : 4,500 Mbps
  • Firewall Latency (64 byte UDP) : 8μs
  • IPS throughput : 2,500 Mbps
  • Threat Protection throughput : 720 Mbps
  • NGFW : 2,000 Mbps
  • Concurrent connections : 1,600,000
  • New connections/sec : 61,500
  • IPsec VPN throughput : 4,800 Mbps
  • IPsec VPN concurrent tunnels : 1,500
  • SSL VPN concurrent tunnels : 1,250
  • Xstream SSL/TLS Inspection : 650 Mbps
  • Xstream SSL/TLS
    concurrent connections
    : 8,192

Physical Specifications

  • Mounting : Rackmount kit available
    (to be ordered separately)
  • Dimensions
    Width x Height x Depth
    : 320 x 44 x 213 mm
  • Weight : 2.2 kg/4.85 lbs (unpacked)
    4.2 kg/9.26 lbs (packed)
    (w-model minimally higher)

Environment

  • Power supply : External auto-ranging AC-DC
    100-240VAC, 2.5A@50-60 Hz
    12VDC, 12.5A, 150W
    Optional second redundant power supply
  • Power consumption : 116: 28 W/96 BTU/hr (idle)
    116w: 30 W/102 BTU/hr (idle)
    116: 57 W/195 BTU/hr (max.)
    116w: 60 W/205 BTU/hr (max.)
  • PoE addition enabled : 38 W/130 BTU/hr (max.)
  • Operating temperature : 0°C to 40°C (operating)
    -20°C to +70°C (storage)
  • Humidity : 10% to 90%, non-condensing

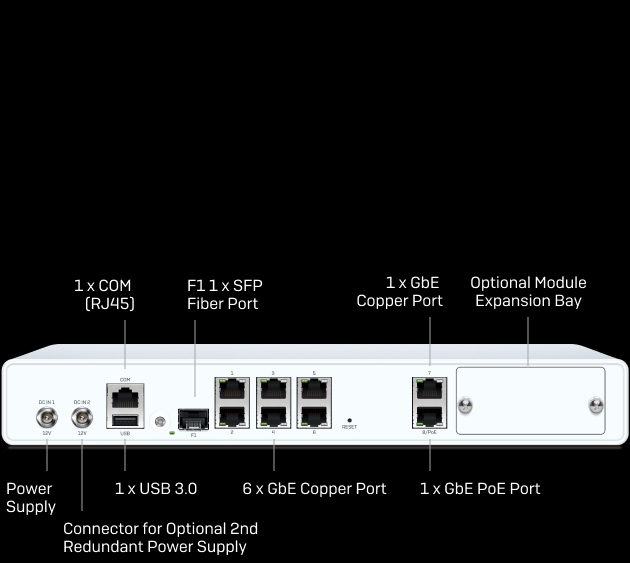

Physical Interfaces

  • Storage
    (local quarantine/logs)
    : Integrated 64 GB SSD
  • Ethernet interfaces
    (fixed)
    : 8 GbE copper
    1 GbE SFP*
  • Power-over-Ethernet (fixed) : 1 x GbE
    803.2at (30W max.)
  • Management ports : 1 x COM RJ45
    1 x Micro-USB (cable incl.)
  • Other I/O ports : 1 x USB 2.0 (front) 1 x USB 3.0 (rear)
  • Number of expansion slots : 1
  • Optional add-on connectivity : SFP DSL module (VDSL2)
    3G/4G module/5G module
    Second Wi-Fi radio (XGS 116w only)
    SFP transceivers

Wireless Specification (XGS 116w only)

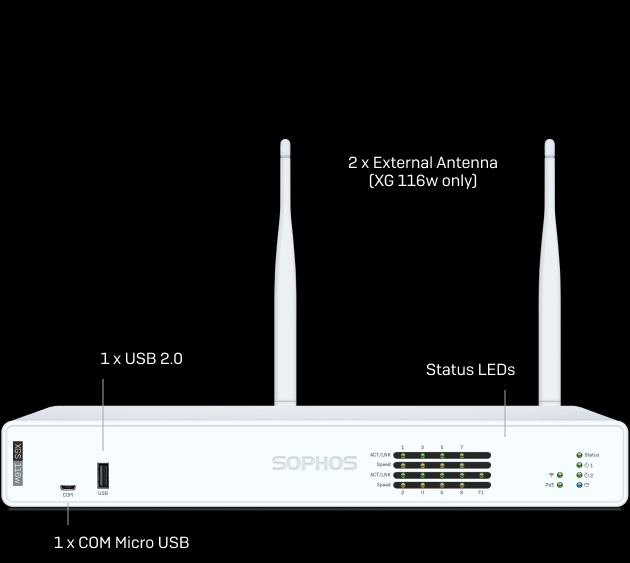

  • No. of antennas : 2 external
  • MIMO capabilities : 2 x 2:2
  • Wireless interface : Wi-Fi 5/802.11a/b/g/n/ac
    (2.4 GHz / 5 GHz)
  • Optional second Wi-Fi module : Wi-Fi 5/802.11a/b/g/n/ac

Product Certifications

  • Certifications : CB, CE, UKCA, UL, FCC, ISED, VCCI, CCC, KC , BSMI, RCM, NOM, Anatel , TEC
* SFP transceivers sold separately

The Sophos XGS 116 and XGS 116w Desktop appliances provide high-end solutions for meeting the comprehensive network security needs of small businesses, retail outlets, and branch offices. They seamlessly integrate into various infrastructures and offer connectivity options along with modularity, ensuring adaptability to evolving circumstances. These appliances are powered by a high-speed CPU, combined with a dedicated Xstream Flow Processor for hardware acceleration, resulting in a dual-processor architecture that strikes an optimal balance between price and performance. Notably, both models offer optional integrated Wi-Fi, which enhances convenience and simplifies connectivity management for users. The XGS 116w variant allows for enhanced wireless capabilities by enabling the addition of a second Wi-Fi radio module, expanding connectivity options even further.

Equipped with Power-over-Ethernet ports (2.5GE on XGS 136), these appliances ensure efficient power delivery. In summary, the Sophos XGS 116 and XGS 116w Desktop appliances offer reliable performance, comprehensive security features, and versatile connectivity options, making them ideal choices for businesses seeking advanced network security solutions.
