Sophos XGS 3100

Availability Status : In Stock

Enhanced Security and Performance for Growing Enterprises

  • Brand : Sophos
  • Model : XGS 3100
  • Form Factor : 1U

Tech Specs

  • Ports/Slots (Max Ports) : 12/1 (20)
  • w-model : n/a
  • Swappable Components : Optional External Power

Throughput

  • Firewall (Mbps) : 47,000 Mbps
  • IPsec VPN (Mbps) : 25,000 Mbps
  • Threat Protection (Mbps) : 2,000 Mbps
  • Xstream SSL/TLS (Mbps) : 2,470 Mbps
Make an Enquiry Free Consultation
genuine products

Genuine
Products

Assured Quality

Assured
Quality

Product Traininig

Product
Traininig

Installation & Maintenance Support

Installation & Maintenance Support

Securing Distributed Business Networks with Advanced Threat Protection Technologies

Sophos XGS 3100 safeguards businesses with constantly expanding user bases and complex network infrastructure that spreads across remote locations. Engineered with a powerful dual-processor architecture and advanced threat protection features, the firewall protects against malicious attacks while maintaining high-availability.

Sophos XGS 3100

Physical Specifications

  • Mounting 1U rackmount :1U rackmount (2 rackmount ears included)
  • Dimensions Width x Height x Depth :438 x 44 x 405 mm
  • Weight :4.7 kg/10.36 lbs (unpacked) 7 kg/15.43 lbs (packed)

Environment

  • Power supply :Internal auto-ranging AC-DC
    100-240VAC, 3-6A@50-60 Hz
    External Redundant PSU Option
  • Power consumption :3100: 50 W/170.77 BTU/hr (idle) 3300: 50 W/170.77 BTU/hr (idle)
    3100: 182 W/621.97 BTU/hr (max.)
    3300: 201 W/686.68 BTU/hr (max.)
  • PoE addition enabled :76 W/260 BTU/hr (max.)
  • Operating temperature : 0°C to 40°C (operating)
    -20°C to +70°C (storage)
  • Humidity :10% to 90%, non-condensing

Product Certifications

  • Certifications :CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI

Performance

  • Firewall throughput :47,000 Mbps
  • Firewall IMIX :23,500 Mbps
  • Firewall Latency (64 byte UDP) :4 µs
  • IPS throughput :10,500 Mbps
  • Threat Protection throughput :2,000 Mbps
  • NGFW :9,000 Mbps
  • Concurrent connections :12,260,000
  • New connections/sec :186,500
  • IPsec VPN throughput :25,000 Mbps
  • IPsec VPN concurrent tunnels :6,500
  • SSL VPN concurrent tunnels : 5,000
  • Xstream SSL/TLS Inspection :2,470 Mbps
  • Xstream SSL/TLS concurrent connections :55,296

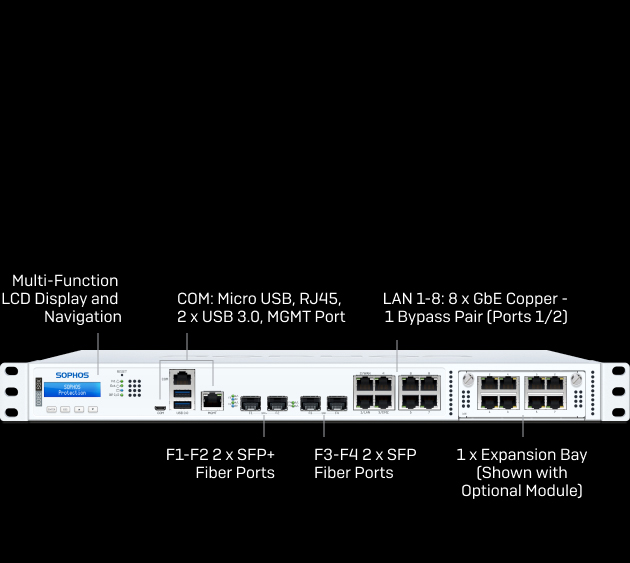

Physical Interfaces

  • Storage (local quarantine/logs) :Integrated min. 240 GB SATA-III SSD
  • Ethernet interfaces (fixed) :8 x GE copper
    2 x SFP fiber*
    2 x SFP+ 10 GbE fiber*
  • Bypass port pairs :1
  • Management ports :1 x RJ45 MGMT
    1 x COM RJ45
    1 x Micro-USB (cable incl.)
  • Other I/O ports :2 x USB 3.0 (front)
    1 x USB 2.0 (rear)
  • Number of Flexi Port slots :1
  • Flexi Port modules (optional) :8 port GbE copper
    8 port GbE SFP fiber
    4 port 10 GbE SFP+ fiber
    4 port GbE copper bypass (2 pairs)
    4 port GbE copper PoE +
    4 port GbE copper
    4 port 2.5 GbE copper PoE
    2 port GbE Fiber (LC) bypass
    + 4 port GbE SFP Fiber
  • Max. total port density (incl. use of modules) :20
  • Max. Power-over-Ethernet (using Flexi Port module) :1 module: 4 ports, 60W max.
  • Optional add-on connectivity :SFP DSL module (VDSL2)
    SFP/SFP+ Transceivers
  • Display :Multi-function LCD module
* Transceivers (mini GBICs) sold separately

The Sophos XGS 3100 is a comprehensive security solution that integrates advanced threat protection, high performance, and easier management. It is powered by Xstream architecture, a dual processor design that offers exceptional throughput and low latency even when handling heavy traffic loads. XGS 3100 strengthens the security of enterprise networks with advanced features like deep packet inspection, intrusion prevention system, web filtering and application control.

The dual processor of Sophos XGS 3100 includes a multi-core CPU and Xstream Flow Processor that facilitate deep packet inspection and accelerate various threat protection features. Sandboxing allows the thorough evaluation of suspicious files in a secure environment for the detection of hidden threats. Additionally, XGS 3100 feature SSL/TLS inspection that scans encrypted traffic for potential threats.

With the Sophos Central management platform, the user gets better insight and control over the network, simplifying policy enforcement, configuration, monitoring, and reporting through its intuitive interfaces and tools. Sophos SD-RED, alongside access layer switches and access points, offers secure and scalable connectivity for branch offices and other remote locations. The redundant power supplies guarantee maximum uptime and availability. Multiple high-speed connectivity options through copper and fiber ports and Flexi Port modules make Sophos XGS 3100 adapt easier to different infrastructures.
