Sophos XGS 6500

Performance

• Firewall throughput : 120,000 Mbps
• Firewall IMIX : 60,000 Mbps
• Firewall Latency (64 byte UDP) : 5μs
• IPS throughput : 50,750 Mbps
• Threat Protection throughput : 17,850 Mbps
• NGFW : 46,500 Mbps
• Concurrent connections : 39,900,000
• New connections/sec : 496,000
• IPsec VPN throughput : 109,800 Mbps
• IPsec VPN concurrent tunnels : 10,000
• SSL VPN concurrent tunnels : 15,000
• Xstream SSL/TLS Inspection : 16,000 Mbps
• Xstream SSL/TLS
  concurrent connections : 768,000

Physical Specifications

• Mounting : 2U sliding rails (included)
• Dimensions
  Width x Height x Depth : 438 x 88 x 645 mm
• Weight : 17.8 kg/39.24 lbs (unpacked)
  27 kg/59.53 lbs (packed)

Environment

• Power supply : 2 x hot-swap internal auto-ranging 100-240VAC, 50-60 Hz PSU
• Power consumption : 188.00 W/642.13 BTU/h (idle)
  497.09 W/1697.8 BTU/h (max.)
• Operating temperature : 0°C to 40°C (operating)
  -20°C to +70°C (storage)
• Humidity : 10% to 90%, non-condensing

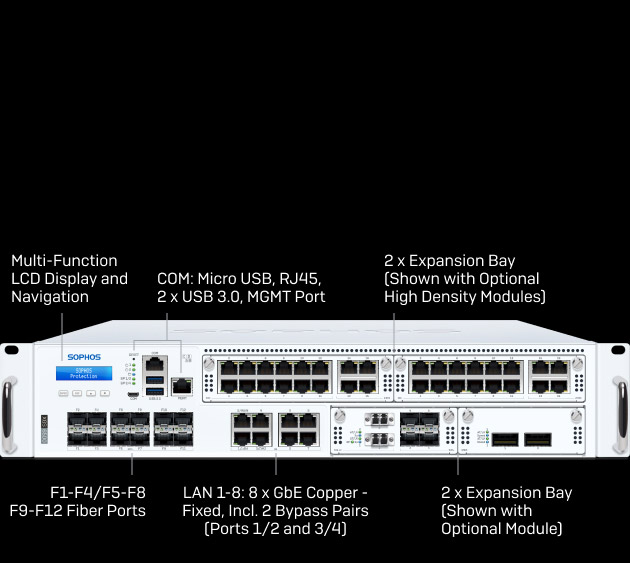

Physical Interfaces

• Storage
  (local quarantine/logs) : 2 x min. 480 GB SATA-III SSD
  HW RAID built into CPU
• Ethernet interfaces
  (fixed) : 8 x GbE copper
  12 x SFP+ 10 GbE fiber*
• Bypass port pairs : 2
• Management ports : 1 x RJ45 MGMT
  1 x COM RJ45
  1 x Micro-USB (cable incl.)
• Other I/O ports : 2 x USB 3.0 (front)
• Number of Flexi Port slots : 2 + 2 for high-density module
• Max. total port density
  (incl. use of modules) : 68

• Optional add-on connectivity : SFP DSL module (VDSL2)
  SFP/SFP+ Transceivers
• Display : Multi-function LCD module
• Flexi Port modules
  (optional) : 8 port GbE copper
  8 port GbE SFP fiber
  4 port 10 GbE SFP+ fiber
  4 port GbE copper bypass (2 pairs)
  2 port 40 GbE QSFP+ fiber
  8 port 10 GbE SFP+ fiber
  2 port GbE Fiber (LC) bypass
  + 4 port GbE SFP Fiber
  2 port 10 GbE Fiber (LC) bypass
  + 4 port 10 GbE SFP+ Fiber
  High-density module (NIC): 12 port
  GE copper + 4 port 2.5 GE copper

Product Certifications

• Certifications : CB, CE, UKCA, UL, FCC, ISED, VCCI, BSMI,
  RCM, NOM, Anatel, KC, CCC, SDPPI
  Planned: TEC
