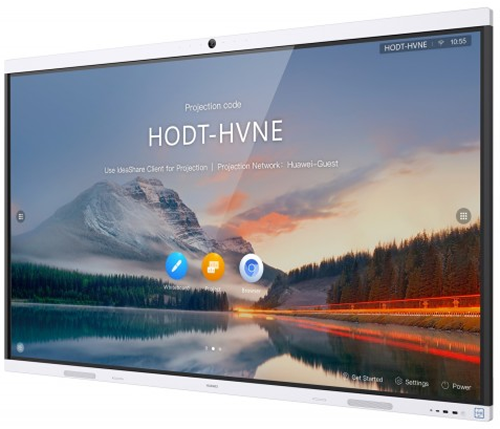

Huawei IdeaHub B2

Intelligent Collaboration, Limitless Evolution

  • Brand :Huawei
  • Model Name :IdeaHub B2
  • Variants :65” 4K UHD | 75” 4K UHD | 86” 4K UHD
  • Key Features :HD Cloud Meetings | Intelligent Whiteboard | Enterprise-Class Security

About This Item

  • All-in-One Collaboration Endpoint
  • 4K Soft Light Screen
  • Professional 4K Camera
  • 25 ms Writing Latency
  • 10-Meter Sound Pickup
Make an Enquiry Free Consultation
genuine products

Genuine
Products

Assured Quality

Assured
Quality

Product Traininig

Product
Traininig

Installation, Maintenance & Support

Installation, Maintenance & Support

The All-in-One Collaboration Endpoint for the Modern Workplace

The HUAWEI IdeaHub B2 is a next-generation intelligent meeting panel designed to redefine smart office collaboration. It delivers a comprehensive all-in-one experience by integrating high-definition cloud conferencing, an intelligent digital whiteboard, and seamless content sharing into a single device.

Featuring a professional 4K camera and 6 microphones that pick up sound within a 10-meter radius, it ensures crystal-clear video and audio for remote participants. The 4K soft light screen is easy on the eyes, while the 25ms ultra-low writing latency on the intelligent whiteboard makes collaboration feel natural and fluid, with the ability to instantly convert handwriting into standard text. Its innovative dual Wi-Fi design guarantees stable, high-quality wireless projection up to 4K, with support for reverse control for interactive presentations. Built with enterprise-class security, the IdeaHub B2 offers full-link protection and intelligent remote O&M, making it the perfect, secure collaboration endpoint for meeting rooms, executive offices, and open workspaces.

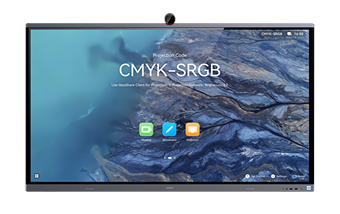

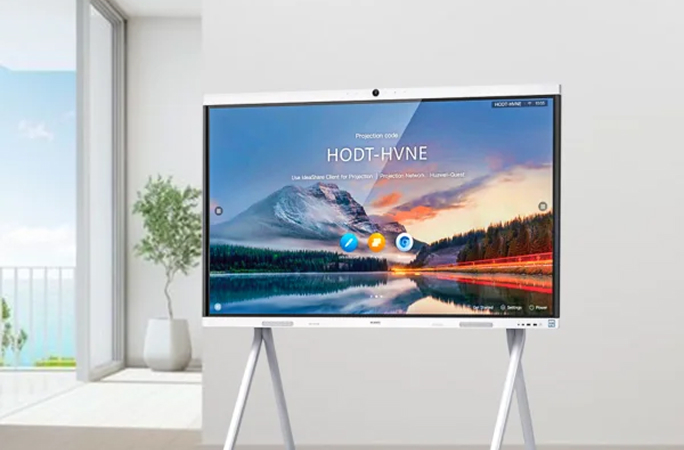

Huawei IdeaHub ES2

Features of HUAWEI IdeaHub B2

4K Soft Light Screen

4K Soft Light Screen

Features a 4K UHD (3840 x 2160) display with zero-gap bonding and an 85% NTSC color gamut, delivering sharp images while ensuring comfortable viewing over long periods.

Professional Video Conferencing Camera

Professional Video Conferencing Camera

Equipped with a professional-grade 4K camera that provides a horizontal 80°/vertical 50° view and 2x digital zoom, delivering crystal-clear dynamic images for all meeting participants.

Intelligent Sound Pickup with 6 Mics

Intelligent Sound Pickup with 6 Mics

Provides 10-meter long-distance sound pickup with six microphones covering a 180° area, ensuring clear voice reception from all remote meeting attendees.

3D Stereo Field Sound Experience

3D Stereo Field Sound Experience

Delivers an immersive audio experience with a 550 cm³ large speaker unit, comprising two full-frequency and two high-frequency speakers, and a maximum power of 30W.

Dual Wi-Fi for Stable Projection

Dual Wi-Fi for Stable Projection

Ensures stable and high-quality wireless projection with its innovative dual-band and dual-Wi-Fi module design, supporting both 2.4GHz and 5GHz frequencies.

All-in-One Collaboration Endpoint

All-in-One Collaboration Endpoint

The Huawei IdeaHub B2 integrates multiple functions into one device, serving as a central hub for HD cloud meetings, whiteboarding, and content sharing.

25 ms Low-Latency Intelligent Whiteboard

25 ms Low-Latency Intelligent Whiteboard

Offers a natural writing experience with ultra-low 25ms latency and precise 1mm accuracy, featuring intelligent recognition that converts handwriting to standard text in one second.

Multi-OS Projection & Reverse Control

Multi-OS Projection & Reverse Control

Supports wireless projection from Android, Windows, iOS, and macOS, and allows for reverse control of the IdeaHub B2 to navigate presentations directly from the screen.

Flexible Whiteboard Content Saving

Flexible Whiteboard Content Saving

Allows users to save whiteboard content and annotations easily via multiple methods, including QR code scanning, email, local storage, or a USB flash drive.

Enterprise-level Information Security

Enterprise-level Information Security

Ensures robust protection of enterprise information assets with cloud-pipe-device-chip full-link security, protecting all data and collaborations on the device.

Intelligent O&M with Remote Management

Intelligent O&M with Remote Management

Enables comprehensive, intelligent operations and maintenance, allowing for remote management, batch configuration, upgrades, and automatic diagnosis of multiple devices.

Versatile Connectivity Ports

Versatile Connectivity Ports

Equipped with comprehensive front and side-panel ports, including USB Type-C, USB 3.0, HDMI IN/OUT, and an OPS port, offering flexible plug-and-play connectivity.

Benefits of HUAWEI IdeaHub B2

checkmark symbol

Seamless Collaboration

Combine cloud conferencing, intelligent whiteboard, and projection for smoother teamwork. Teams save time and boost productivity with all-in-one functionality.

checkmark symbol

Professional-Grade Meetings

Crystal-clear 4K video, 10-meter sound pickup, and 3D stereo audio enhance communication. Remote participants feel fully included in every meeting.

checkmark symbol

Effortless Writing & Collaboration

Ultra-low 25 ms latency with intelligent handwriting recognition captures ideas instantly. Teams can annotate and convert notes into text for faster collaboration.

checkmark symbol

Reliable Wireless Projection & Sharing

Dual Wi-Fi ensures stable 4K screen sharing with reverse control from the touchscreen. Presentations start quickly, keeping discussions flowing without delays.

checkmark symbol

Enterprise-Grade Security

Full cloud-pipe-device-chip protection keeps sensitive data and business information safe. Teams can collaborate confidently without risk of data breaches.

checkmark symbol

Simplified Device Management

Intelligent O&M allows remote monitoring, batch updates, and quick fault resolution. IT workload is reduced, keeping devices running smoothly with minimal downtime.

checkmark symbol

Smart Office Ecosystem for All Scenarios

The IdeaHub B2 is designed for various office environments, including regular meeting rooms, executive offices, open working areas, and multi-purpose training rooms.

checkmark symbol

Versatile Office Use

Designed for meeting rooms, executive offices, open spaces, and training areas. The device adapts to any office scenario for flexible collaboration.

checkmark symbol

Instant Idea Capture & Sharing

Quickly save and distribute whiteboard content via QR code for immediate access. No ideas are lost, enabling efficient follow-up and continued teamwork.

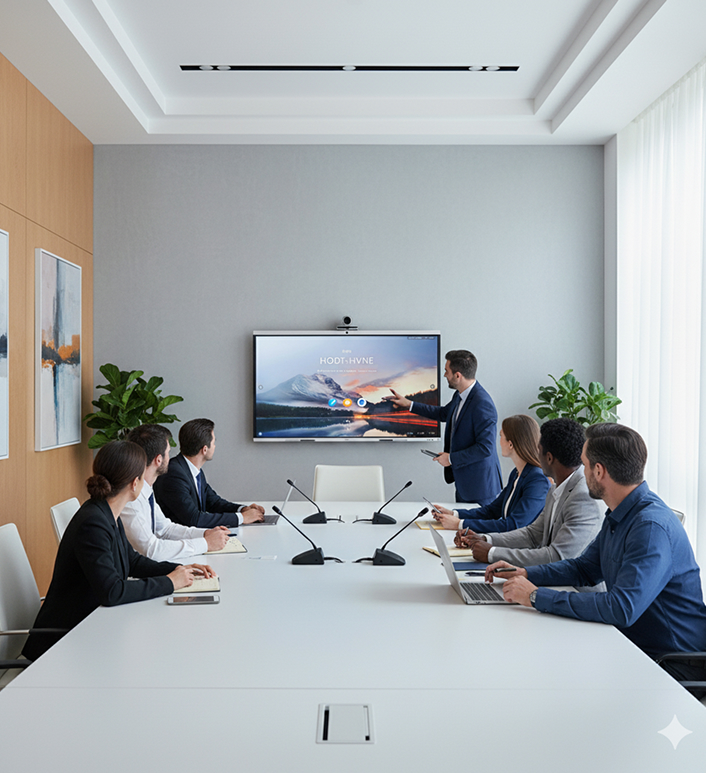

Benefits of Huawei IdeaHub

Pre-Loaded Software & Platforms Included with the HUAWEI IdeaHub B2

Native Huawei Cloud Meeting

Native Huawei Cloud Meeting

Provides a native HD meeting experience on the Android system, allowing users to join 1080p meetings instantly through a simple QR code scan for streamlined collaboration.

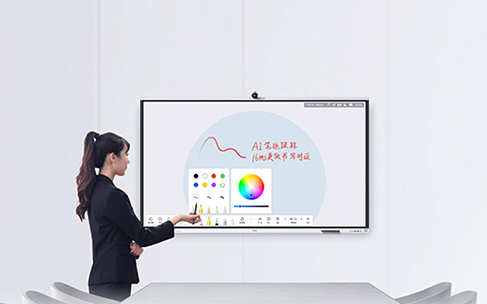

Intelligent Whiteboard Application

Intelligent Whiteboard Application

Features a 25 ms low-latency writing experience with intelligent recognition that accurately converts handwriting into standard text within one second, streamlining discussion and ideation.

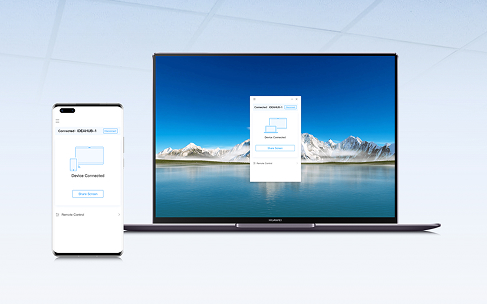

IdeaShare Functionality

IdeaShare Functionality

Enables multiple wireless and wired projection modes, including projection codes & NFC. Its dual Wi-Fi design ensures sharing & supports reverse control for interactive presentations from the screen.

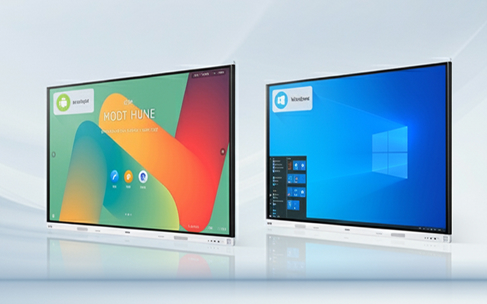

Android & Windows OS Flexibility

Android & Windows OS Flexibility

Offers the Android 9.0 operating system with the option to extend functionality to Windows 10 using an OPS, allowing users to switch between ecosystems and access a wider range of applications.

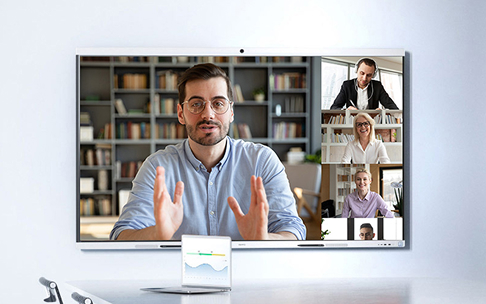

Remote Management & O&M Tools

Remote Management & O&M Tools

Provides comprehensive, intelligent operations and maintenance capabilities for remote management of multiple devices, including batch configuration, upgrades, and automatic diagnosis.

Enterprise Security Framework

Enterprise Security Framework

Ensures enterprise-level information security through cloud-pipe-device-chip full-link protection, protecting all collaborative activities and data on the device.

  • Product Model: 65": IHB2-65PU
    75": IHB2-75PU
    86": IHB2- 86PU
  • Product Dimensions (H x W x D): 65"：916.1mm × 1484.5mm × 91.6mm
    75"：1040.5mm ×1705.7mm × 91.8mm
    86"：1180.6mm×1953.0mm × 91.8mm
  • Package Dimensions (H x W x D): 65"：1050mm ×1650mm × 220mm
    75"： 1170mm ×1900mm × 220mm
    86"：1300mm×2090mm 250mm

Component

  • Device:1
  • Stylus Pen:2
  • Cable:1 × Power Cable

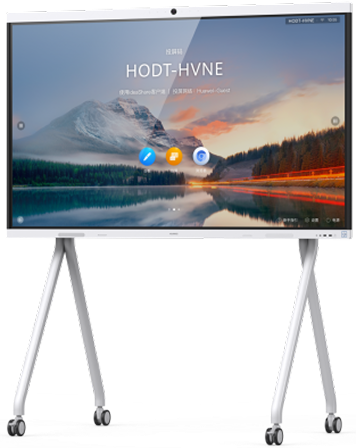

  • Rolling Stand:Optional (65", 75", and 86")
  • Wall-Mounted Bracket:Optional (65", 75", and 86")
  • IdeaShare Key:Optional

Screen

  • Resolution:4K UHD (3840 × 2160)
  • Backlight Type:D-LED
  • Screen Lamination:Zero-Gap Bonding
  • Viewing Angle:178°
  • Color Depth:10bit (8bit + FRC)
  • Color Gamut:85% NTSC (typical value)
  • Screen Refresh Rate:60Hz
  • Number of Touch Points:20

Camera

  • Zoom:2 × Digital Zoom
  • Maximum Angle of View:Horizontal: 80° / Vertical: 50°
  • Video Output Resolution:4K
  • TV Distortion:＜2%
  • Aperture:F1.8

Speaker

  • Frequency Domain:100 Hz to 20 kHz
  • Speaker Unit:2 × full frequency speaker +
    2 × high-frequency speaker
  • Maximum Power:30W

Microphone

  • Sound Pickup Angle:180°
  • Quantity:6
  • Frequency Domain:100Hz-20kHz
  • Sound Pickup Distance:10m

Wireless Connection

  • Dual-Wi-Fi Module:√
  • Frequency:2.4GHz + 5GHz

System

  • CPU:4 Core
  • RAM:4 GB
  • Flash:32 GB
  • OS:Android 9.0 / Windows 10

Interface

  • Front-Panel Ports:USB Type-C × 1
    USB Type-A 3.0 × 2
  • Side-Panel Ports:USB Type-A 3.0 × 1
    USB Type-B × 1
    HDMI IN × 2
    HDMI OUT × 1
    COM port × 1
    RJ45 Network Port × 1
    80-pin OPS Port × 1
    3.5mm Line-in × 1
    3.5mm Line-out × 1

Meeting

  • Third-Party Cloud Meeting App:√

Projection

  • Projection Mode:IdeaShare Projection Code
    HDMI
    USB Type-C wired Projection
    IdeaShare Key
    NFC / Projection through the Drop-down Menu
  • Projection Effect:Wireless projection: up to 4K 30 fps
    Wired projection: up to 4K 60 fps
  • Supported OS on Clients:Android / Windows / iOS / macOS
  • Annotate during Projection:√
  • Reverse Control:√

Interface (Writing)

  • Writing Latency:≤25ms
  • Precision:±1mm
  • Intelligent Writing Recognition:√
  • Whiteboard Saving Mode:QR code scanning / Email / Local storage / USB flash drive
  • Touch Sensing Distance:≤1.5mm

The HUAWEI IdeaHub B2 is a next-generation intelligent meeting panel engineered as an all-in-one collaboration endpoint. It features a 4K UHD (3840x2160) D-LED display with zero-gap bonding, a 10-bit color depth (8bit+FRC), and a typical 85% NTSC color gamut. The system is powered by a 4-core CPU, 4 GB RAM, and 32 GB flash, running on Android 9.0 with optional Windows 10 via an OPS module. Its professional 4K camera offers an 80° horizontal and 50° vertical field of view with 2x digital zoom. Audio is delivered through a 550 cm³ speaker unit (2x full-range + 2x high-frequency) with 30W max power, complemented by a six-microphone array providing 10-meter sound pickup across a 180° area. Connectivity is extensive, including dual HDMI IN, USB 3.0, RJ45, and an 80-pin OPS port. The device supports 20-point touch and offers a writing latency of ≤25ms with intelligent handwriting recognition.
