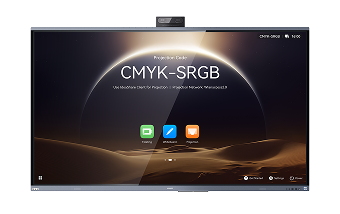

Huawei IdeaHub ES2

Intelligent Collaboration, Limitless Evolution

  • Brand :Huawei
  • Model Name :IdeaHub ES2
  • Variants :65” 4K | 75” 4K | 86” 4K
  • Key Features :BYOM | Wi-Fi 6 Direct Projection | 4K Soft Light Screen

About This Item

  • All-in-One Collaboration Endpoint
  • Professional 4K Camera
  • 16 ms Ultra-Low Writing Latency
  • 12-Meter Intelligent Sound Pickup
  • Enterprise-Grade Security
Make an Enquiry Free Consultation
genuine products

Genuine
Products

Assured Quality

Assured
Quality

Product Traininig

Product
Traininig

Installation, Maintenance & Support

Installation, Maintenance & Support

Next-Generation Collaboration for Smart Offices

The HUAWEI IdeaHub ES2 is built on a next-generation hardware platform to enable boundless collaboration. It features Bring Your Own Meeting (BYOM) capability, HD immersive meeting quality, and Wi-Fi 6 for direct projection without needing a LAN. With a 4K soft light screen, 16 ms low-latency writing, and a professional 4K camera, it delivers a seamless experience.

The Acoustic Engine 2.0 ensures 12-meter sound pickup and crystal-clear voice. Perfect for various rooms, from executive offices to open areas, it easily adapts to mainstream cloud meeting apps for a new style of smart office. The versatile Huawei IdeaHub ES2 is available in 65-inch, 75-inch, and 86-inch models to suit any workspace. It provides a powerful video conferencing solution with AI capabilities like Auto-Framing and voice tracking. This all-in-one corporate solution also features enhanced security and intelligent O&M for enterprise deployments, making it an ideal choice for businesses.

Huawei IdeaHub ES2

Features of HUAWEI IdeaHub ES2

4K Soft Light Screen

4K Soft Light Screen

Features a 4K UHD display with optical anti-blue light and flicker-free technology, restoring all image details while ensuring comfortable viewing and eye protection.

Professional 4K Video Conferencing Camera

Professional 4K Video Conferencing Camera

Equipped with a 2 μm² ultra-large photosite for a doubled signal-to-noise ratio and Huawei-developed AI algorithms, delivering true-to-life, natural clarity even in long meetings.

Acoustic Engine 2.0 with 12-Meter Sound Pickup

Acoustic Engine 2.0 with 12-Meter Sound Pickup

Provides 12-meter ultra-long-distance sound pickup, with DNN-based dereverberation for clear voice in glass-walled rooms and AEC algorithms to eliminate cross-site interference.

3D Stereo Field Sound Experience

3D Stereo Field Sound Experience

Delivers an optimal sound experience with dual chambers and four speakers, a maximum of 95 dB sound pressure level for large rooms, and a self-developed bass booster.

Bring Your Own Meeting (BYOM)

Bring Your Own Meeting (BYOM)

Enables effortless projection through the IdeaShare app without needing additional applications or an OPS, making it a cost-effective and user-friendly solution for your preferred meeting apps.

Wi-Fi 6 for Direct Projection

Wi-Fi 6 for Direct Projection

Sync with the HUAWEI IdeaHub ES2 by simply enabling Wi-Fi on a mobile phone or PC, without the need to join the same LAN, for quick and effortless wireless sharing.

16 ms Low-Latency Intelligent Whiteboard

16 ms Low-Latency Intelligent Whiteboard

Offers a natural writing experience with a 16 ms low-latency screen for synchronous writing and accurate text/graphic identification, converting handwritten notes to digital content.

Multi-Window for Efficient Multitasking

Multi-Window for Efficient Multitasking

Run dual applications on one screen with adjustable window ratios (1:1, 1:2, 2:1), doubling efficiency for comparative analysis and presentations.

App Multiplier for Enhanced Productivity

App Multiplier for Enhanced Productivity

Allows app display in dual windows, letting you navigate between an app's home screen on the left and its detailed content screen on the right simultaneously.

Enterprise-level E2E Security Protection

Enterprise-level E2E Security Protection

Ensures robust information security with chip-device-pipe-cloud end-to-end (E2E) protection and CC EAL5+ high-level security certification for global commercial systems.

Intelligent O&M with IdeaManager

Intelligent O&M with IdeaManager

The IdeaManager platform allows for remote management and control of multiple devices, including configuration, over-the-air (OTA) updates, and bulletin board pushes.

All-Scenario Smart Office Ecosystem

All-Scenario Smart Office Ecosystem

A perfect solution for boundless collaboration and communication designed to fit in any room, from regular meeting rooms and executive offices to open areas and multi-functional training rooms.

Benefits of HUAWEI IdeaHub ES2

checkmark symbol

Enable Seamless Collaboration

Easily adapt to mainstream cloud meeting apps for boundless communication in any room, from executive offices to open areas.

checkmark symbol

Experience Immersive Meetings

Benefit from AI meeting technology such as voice tracking, Auto-Framing, and an acoustic baffle for an HD immersive meeting quality.

checkmark symbol

Write as Naturally as on Paper

Enjoy a fluid, natural writing experience with a 16 ms low-latency digital whiteboard screen that captures your ideas synchronously without delay.

checkmark symbol

Bring Your Meetings Anywhere with BYOM

Use the hub's superior camera and audio for your laptop-based calls with BYOM, making meetings more professional without extra hardware.

checkmark symbol

Manage Devices Remotely

Use the IdeaManager platform for remote configuration, OTA updates, and control of multiple devices, simplifying IT operations.

checkmark symbol

Protect Sensitive Information

Rely on enterprise-grade, chip-to-cloud E2E security protection and CC EAL5+ certification to keep your business data secure.

checkmark symbol

Work on Multiple Tasks Efficiently

Enhance your app productivity with multi-window multitasking. Run dual applications on one screen with adjustable ratios, doubling presentation efficiency.

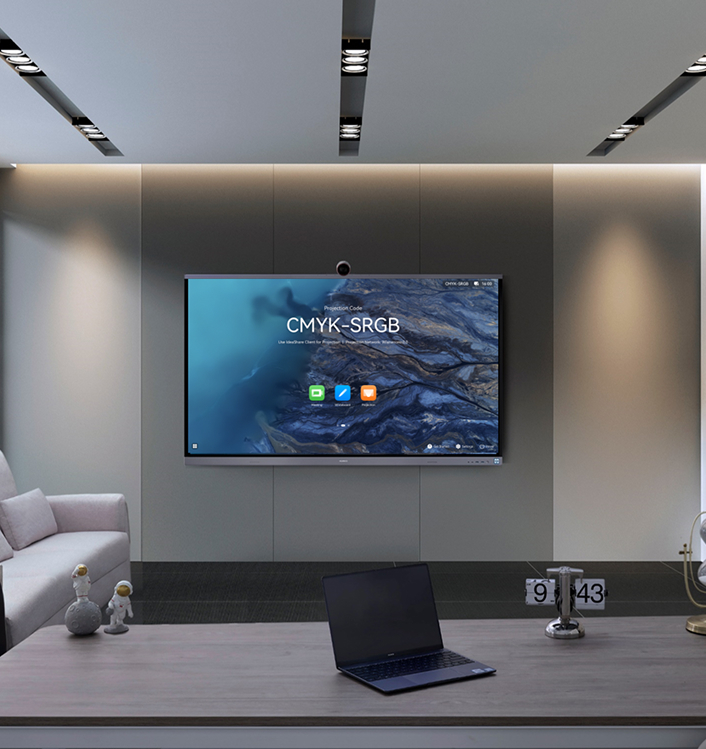

Benefits of Huawei IdeaHub

Pre-Loaded Software & Platforms Included with the HUAWEI IdeaHub ES2

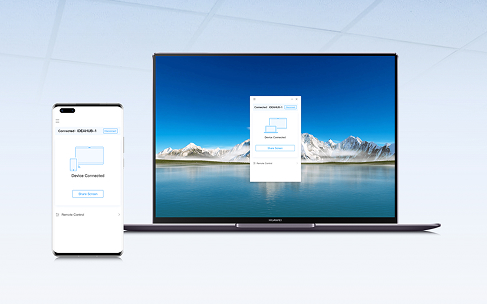

IdeaShare App

IdeaShare App

Enables effortless wireless projection from mobile phones or PCs by simply enabling Wi-Fi, without the need to join the same LAN, for a seamless sharing experience.

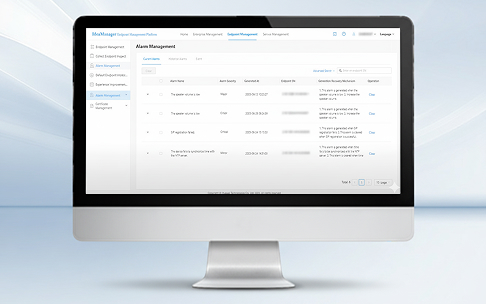

IdeaManager Platform

IdeaManager Platform

A comprehensive device management platform that allows for remote management and control of multiple devices, including basic configuration, over-the-air (OTA) updates, and bulletin board pushes.

Huawei Cloud Meeting

Huawei Cloud Meeting

Provides a native, immersive FHD (1080p) intelligent meeting experience with voice tracking, Auto-Framing, and support for H.264 + SIP dual protocols HD hardware codec.

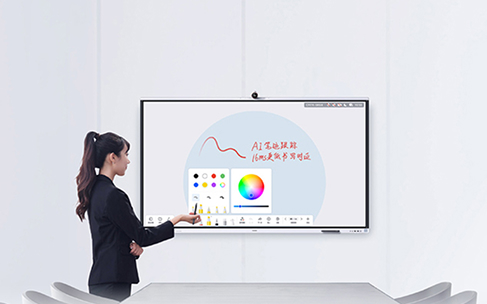

Intelligent Whiteboard Application

Intelligent Whiteboard Application

Features a 16 ms low-latency screen for synchronous writing, with accurate text and graphic identification and the conversion of handwritten content into digital form.

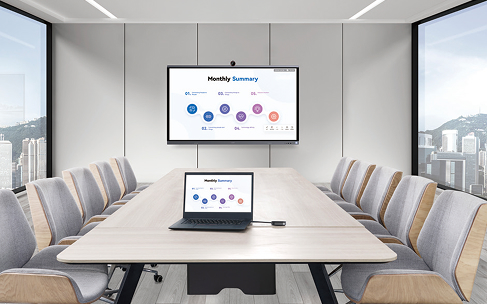

App Multiplier

App Multiplier

Allows for massive apps to fit your needs, with app display in dual windows for navigating between content and details on a single screen, which boosts productivity.

Enterprise Security Suite

Enterprise Security Suite

Features an embedded encryption chip that supports H.235, STARTTLS, TLS, and SRTP encryption, ensuring end-to-end (E2E) security protection, and CC EAL5+ certification for commercial systems.

  • Product model: 65": IHE2-65SA
    75": IHE2-75SA
    86": IHE2-86SA
  • Product dimensions (H x W x D): 65": 947.5 mm x 1484.5 mm x 91.6 mm
    75": 1071.9 mm x 1705.7 mm x 91.8 mm
    86": 1212.0 mm x 1953.0 mm x 91.8 mm
  • Package dimensions (H x W x D): 65": 1050 mm x 1650 mm x 220 mm
    75": 1170 mm x 1900 mm x 220 mm
    86": 1300 mm x 2090 mm x 250 mm
  • Net/Gross weight (including the package): 65": 35.5 kg / 43.0 kg
    75": 47.0 kg / 57.0 kg
    86": 62.0 kg / 73.5 kg

Component

  • Device:1
  • Stylus pen:2
  • Cable:1 x power cable

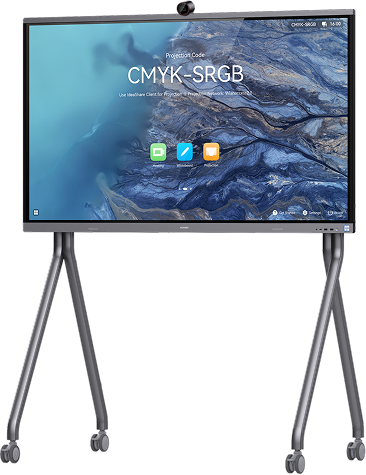

  • Rolling stand: Optional (65", 75", and 86")
  • Wall-mounted bracket: Optional (65", 75", and 86")
  • IdeaShare Key: Optional (Type-A/Type-C)
  • OPS:Optional

Screen

  • Resolution:4K (3840 x 2160 pixels)
  • Backlight type:D-LED
  • Screen lamination:Zero-gap bonding

Writing

  • Writing latency:16 ms
  • Touch sensing distance:≤ 2 mm
  • Intelligent writing recognition: Supports recognition of Chinese, English, and 11 types of graphics

Camera

  • Resolution:4K
  • Sharpness:1800 lines
  • Lens cover:√
  • Horizontal FoV:80°
  • TV distortion:＜2%

Speaker

  • Frequency domain:100 Hz to 20 kHz
  • Number of units:4
  • Total power:40 W

Microphone

  • Sound pickup angle:180°
  • Sound pickup distance:12 m
  • Frequency domain:80 Hz to 20 kHz
  • Optimized sound pickup: Sound source location, echo cancellation, and automatic gain control

Conferencing

  • Native meeting: Huawei Cloud Meeting, On-premises conference
  • Dual streams (audio/video + data sharing): On-premises conference: 1080p 30 fps + 1080p 30 fps / 4K 8 fps
    Huawei Cloud Meeting: 1080p 30 fps + 1080p 30 fps / 4K 8 fps
  • BYOM:√

AI Function

  • Auto-Framing:√
  • Intelligent tracking:√
  • Acoustic baffle:√
  • DNN-based dereverberation*:√

System

  • CPU:8 cores
  • RAM:12 GB
  • Flash:64 GB
  • Operating system: HarmonyOS, Windows*
  • Security: Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, secure boot, and TEE

Wireless Connection

  • Wi-Fi module:Wi-Fi 6
  • Wi-Fi frequency:2.4 GHz + 5 GHz
  • NFC:√

Interface

  • Video input:1 x HDMI (up to 4K)
  • Video output:1 x HDMI (up to 4K)
  • Audio input: 1 x 3.5 mm LINE IN
    1 x HD-AI
  • Audio output:1 x 3.5 mm LINE OUT
  • Other ports: 3 x USB Type-A 3.0
    1 x USB Type-C
    1 x RJ45 (10/100/1000 Mbit/s LAN)

The Huawei IdeaHub ES2 is a next-generation smart office solution designed for immersive collaboration. Available in 65-inch, 75-inch, and 86-inch models, the IdeaHub ES2 delivers ultra-clear 4K UHD resolution with zero-gap bonded D-LED displays and low blue light certification for eye comfort. Powered by an 8-core CPU, 12 GB RAM, and 64 GB flash storage, it supports BYOM, Wi-Fi 6 direct projection, and multi-window multitasking. The system integrates a professional 4K camera with intelligent tracking and auto-framing, alongside a 12-microphone array with 12 m far-field pickup and acoustic baffle technology. With 16 ms low-latency writing, intelligent handwriting recognition, enterprise-grade security (CC EAL5+), and HarmonyOS/Windows compatibility, the Huawei IdeaHub ES2 sets a high standard for corporate video conferencing and interactive collaboration.
